PFD Operation
4-12 SkyView SE Pilot’s User Guide - Revision I
SkyView Classic / SE / HDX System Installation Guide for information about this setting. Figure 24
illustrates the pitch up warning arrows with the slivers of ground.

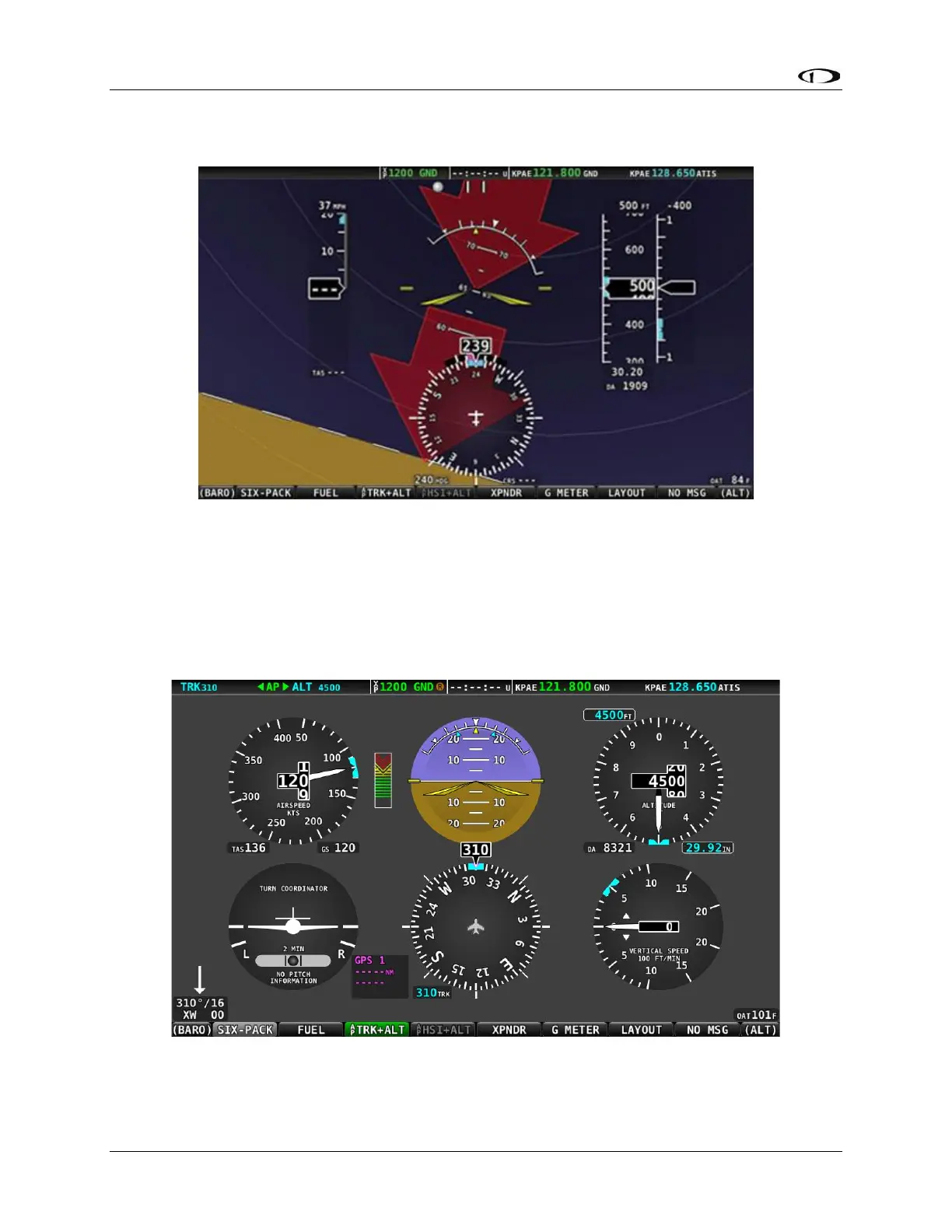

Figure 24 – Extreme Pitch Warning Indicator Arrows
Six-Pack Presentation
SkyView SE includes the traditional six-pack analog presentation of flight instruments as well as
the EFIS tape-based display. SkyView SE’s “six-pack” flight instrumentation mode lets you fly
the gauges you’re used to if you’re new to glass. After flying in the six-pack mode, try out the
“EFIS” style as you get comfortable: changing the presentation is just a few buttons away.
Figure 25 – SIX-PACK Display
