Eagle EV-30 - Page 122

rev_0.6 122 / 135

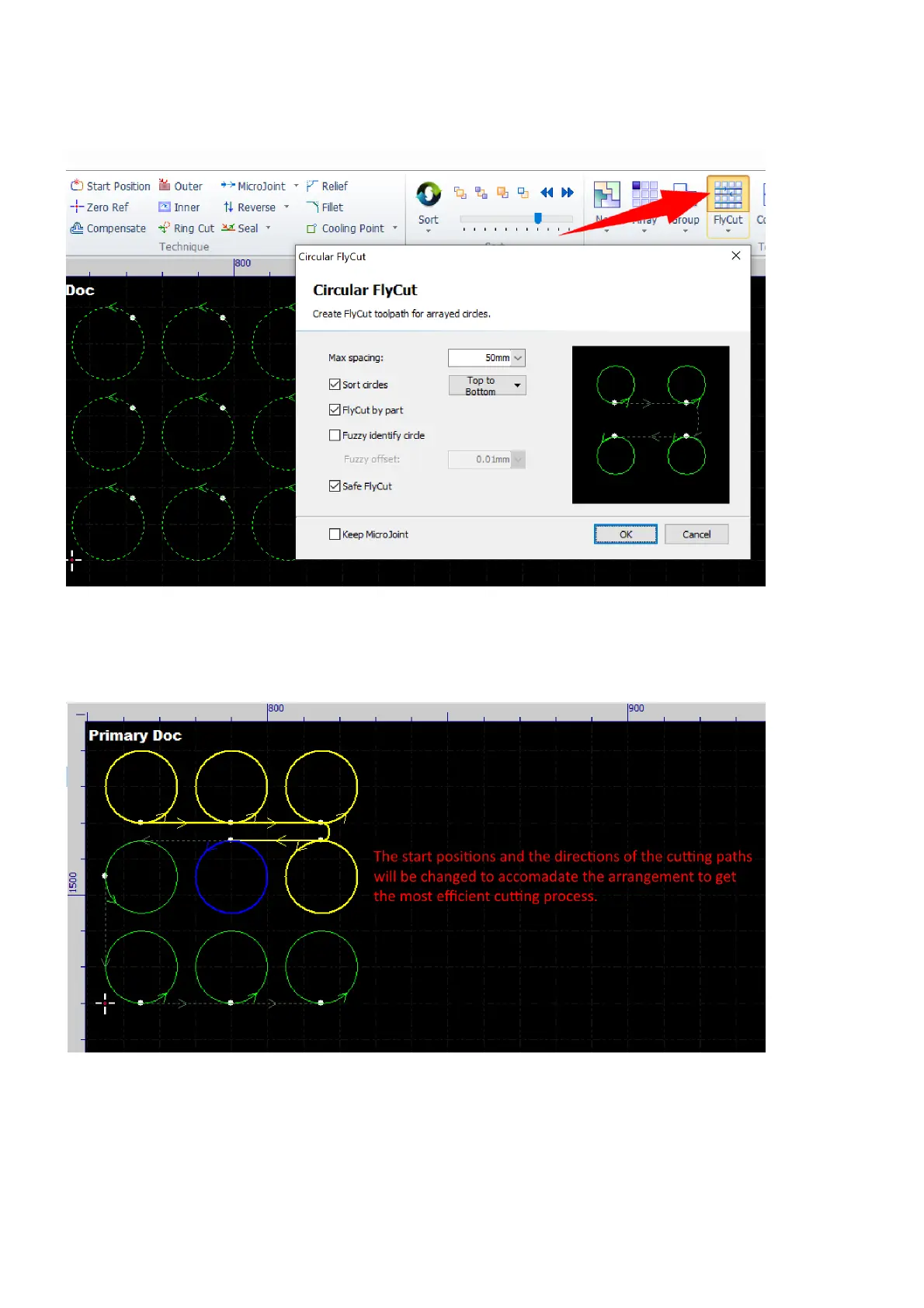

Select the array of circles and then select the command FlyCut in Home or select the command Circle FlyCut
in the pulldown-menu Home>FlyCut.
Set parameters in the pop-up dialog and click the button OK to complete the operation. The start positions
and the directions of the cutting paths will be changed to accommodate the arrangement to get the most
efficient cutting process.
