AM.S.
r 'ups Gro
T0
ELECThÔNJC$
12000 E
SKELLY OR
XULSA,
OK 74128

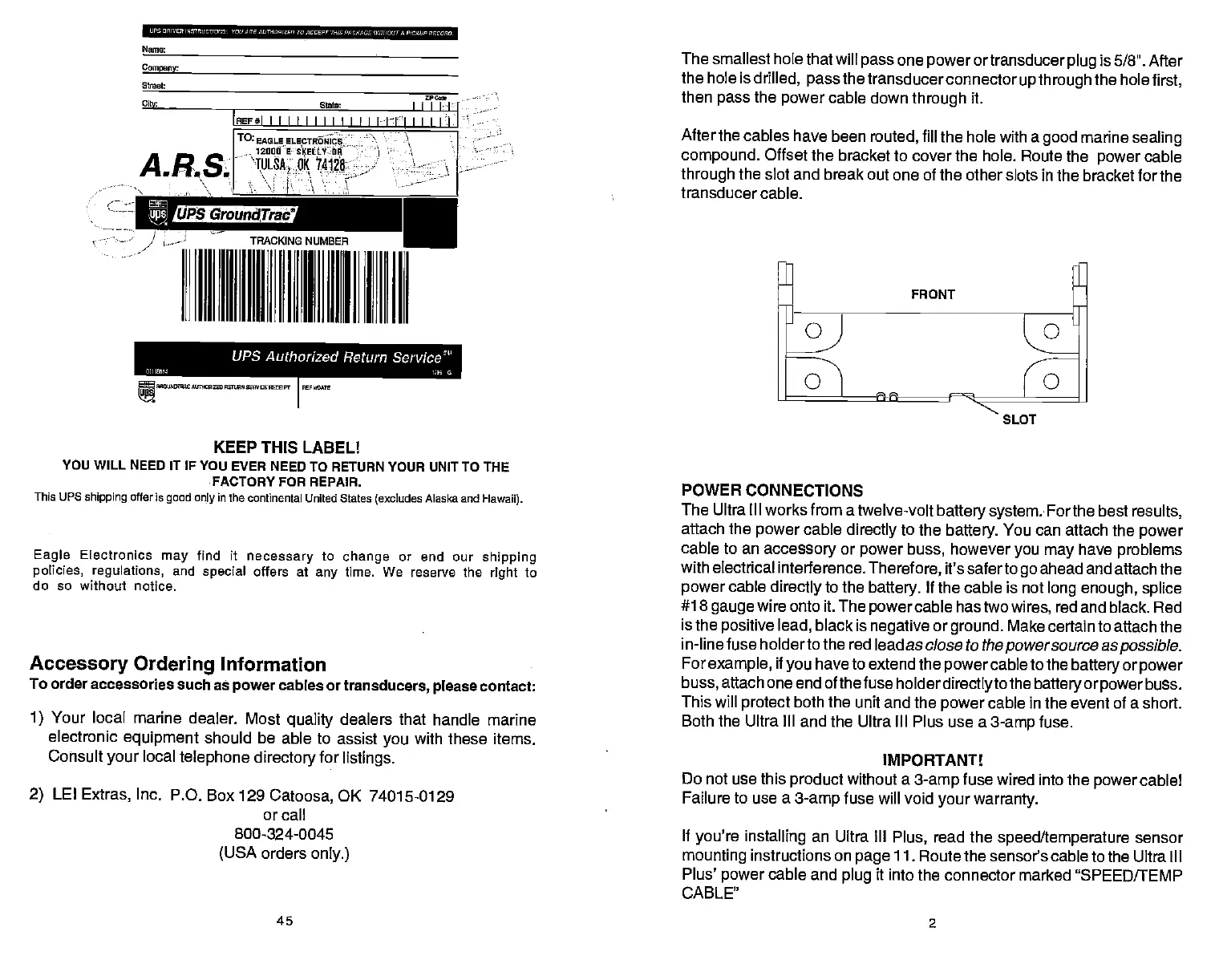

KEEP THIS LABEL!
YOU WILL NEED IT IF YOU
EVER NEED TO RETURN YOUR UNIT TO THE
FACTORY FOR REPAIR.
This UPS
shipping
offer is
good only
in the continental United States
(excludes
Alaska and
Hawaii).
Eagle
Electronics
may
find it
necessary
to
change
or end our
shipping
policies, regulations,
and
special
offers at
any
time. We reserve the
right
to
do so without notice.
Accessory
Ordering
Information
To order
accessories such as
power
cables or
transducers, please
contact:
1)
Your local
marine dealer. Most
quality
dealers
that handle marine
electronic
equipment
should be able
to assist
you
with these items.
Consult
your
local
telephone directory
for
listings.
2)
LEI
Extras,
Inc. P.O. Box 129
Catoosa,
OK
74015-0129
or call
800-324-0045
(USA
orders
only.)
POWER CONNECTIONS
The Ultra Ill works from a
twelve-volt
battery system.
For the best
results,
attach the
power
cable
directly
to the
battery.
You can attach the
power
cable to an
accessory
or
power buss,
however
you may
have
problems
with electrical interference.
Therefore,
it's saferto
go
ahead and attach the
power
cable
directly
to the
battery.
If the cable is not
long enough, splice
#18
gauge
wire onto it. The
powercable
has
two
wires,
red and black. Red
is the
positive
lead,
black is
negative
or
ground.
Make certain to attach the
in-line fuse holderto the red leadas close to the
powersource
as
possible.
For
example,
if
you
have to extend the
power
cable to
the
battery
or
power
buss,
attach one end of the fuse
holderdirectlytothe batteryor power
buss.
This will
protect
both the unit and the
power
cable in the event of a
short.
Both the Ultra Ill and the Ultra Ill Plus use a
3-amp
fuse.
IMPORTANT!
Do not use this
product
without a
3-amp
fuse wired into the
power
cable!
Failure to use a
3-amp
fuse will void
your warranty.
If
you're installing
an Ultra Ill
Plus,
read the
speed/temperature
sensor
mounting
instructions on
page
11. Route the sensor's cable to the Ultra Ill
Plus'
power
cable and
plug
it into the connector marked "SPEEDITEMP
CABLE"
45
2
Naso:
coa
I
IltI
I
Ii
cit
AEF#lIllIllllIllllrllll
/!
i__i TRAcKING NUMBER
H OI
The smallest hole that will
pass
one
powerortransducerplug
is 5/8". After
the hole is
drilled,
pass
the
transducerconnector
up through
the hole
first,
then
pass
the
power
cable down
through
it.
After the cables have been
routed,
fill the hole with a
good
marine
sealing
compound.
Offset the bracket to cover the hole.
Route the
power
cable
through
the slot and break out one of
the other slots in the bracket for the
transducer cable.
OLM4DThACAmo,=RSTuflNS,,R,IcEF=PIFT
nEp.oAm
SLOT
