E&P HYDRAULICS Level M System - Identification of the Touchscreen

Sign Name Description
Position indi-
cator
When the circle is red, the jacks are in the extended position.
Spirit level
Tol show the position of the vehicle. If the blue circle is in the center of
the spirit level, the vehicle is leveled.
Level indica-
tor
To show if the vehicle is level.
The level indicator has 4 arrows and a circle in the middle. 1 or 2
arrows light up during the manual leveling procedure when the vehicle
is not yet level. Use the level buttons on the sides where the arrows
are yellow. The vehicle is leveled when there are no yellow arrows and
the circle in the middle is green.

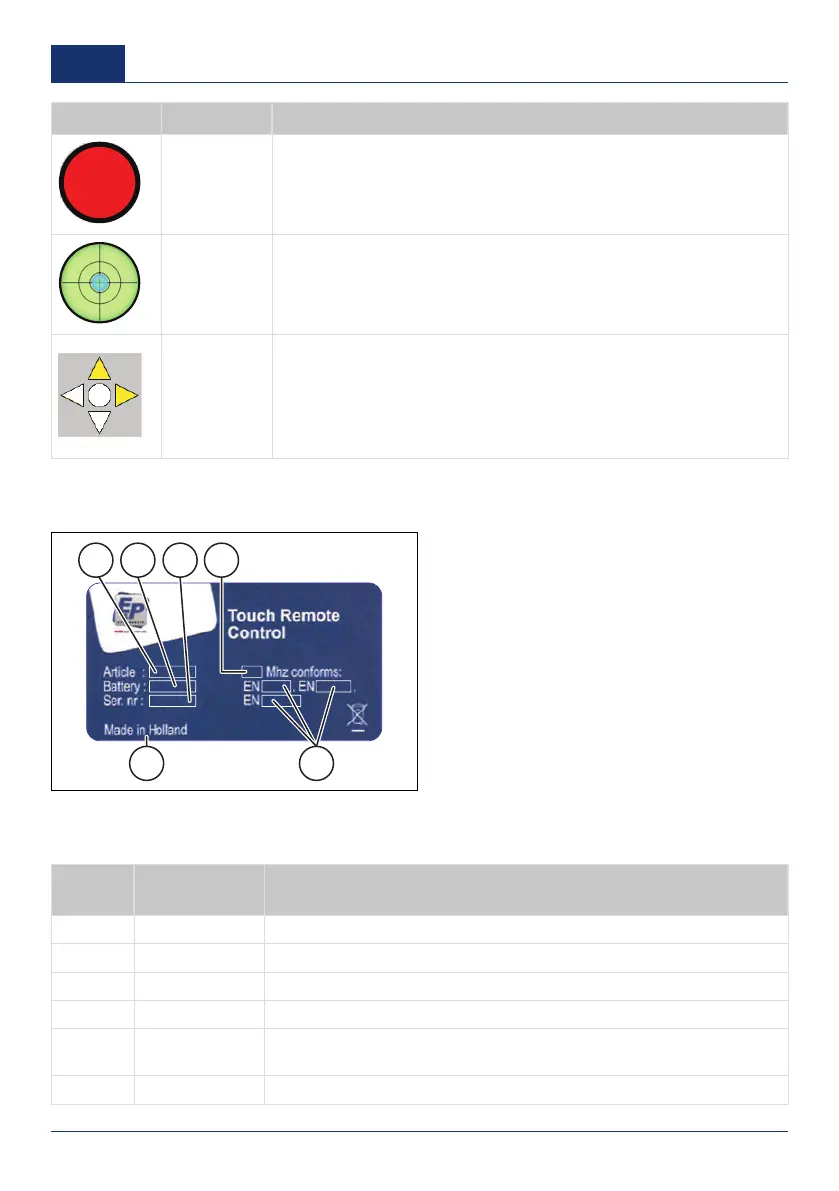

Identification of the touchscreen
6
1 2 3 4
5
1 Article name
2 Battery
3 Serial number
4 Radio frequency
5 Safety standards
6 Origin
Refer-
ence
Name Description
1 Article name Specific identification name of the touchscreen
2 Battery Specific battery used for the touchscreen
3 Serial number Unique identification code of the touchscreen
4 Radio frequency Ultra high radio frequency used by the touchscreen to communicate
5
Safety stand-
ards
Directives applicable to the touchscreen
6 Origin Country of origin of the touchscreen
18 0001
US
