E&P HYDRAULICS Level M System - Schematic Diagrams; Schematic Diagram of the Hydraulic Leveling System (10 Hoses)

Schematic diagrams

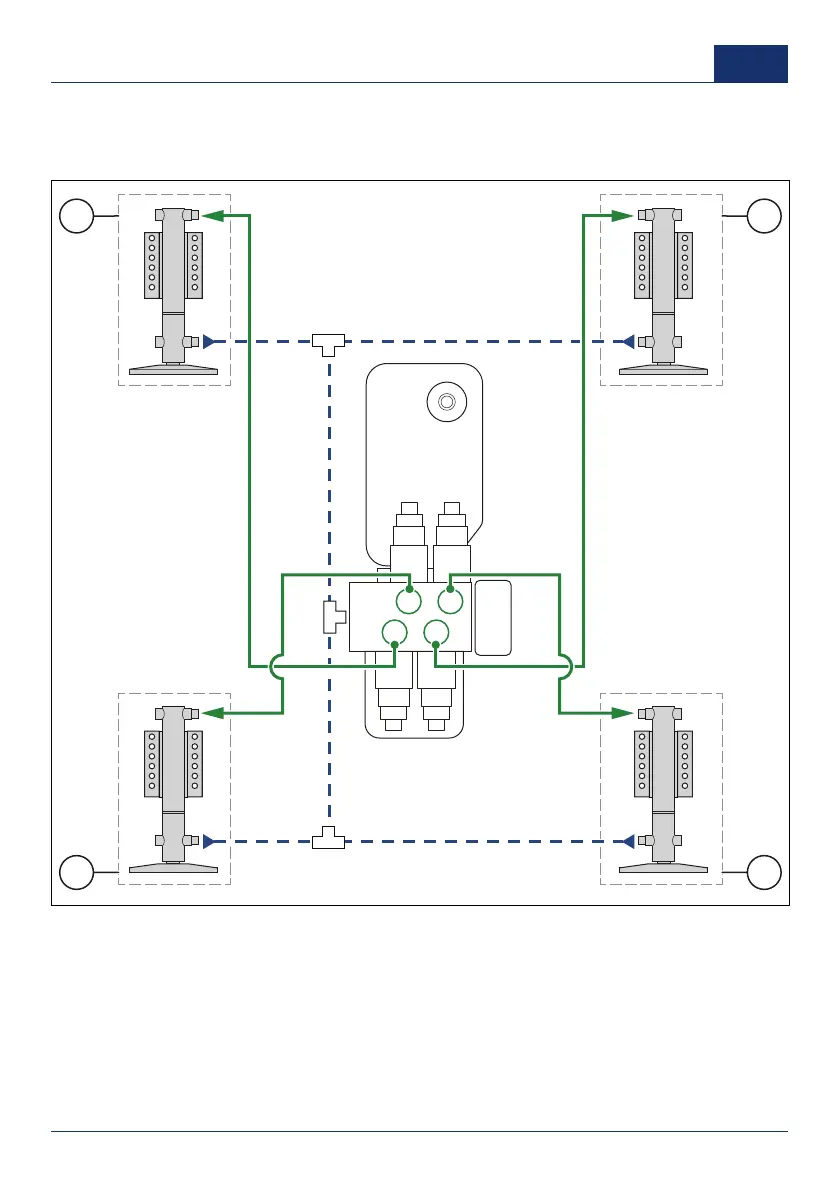

Schematic diagram of the hydraulic leveling system (10 hoses)
1 3
2 4
S2 S4
S3S1
R1 R3
R2 R4
R6
R5
R
A B
C D
A Front left jack
B Front right jack
C Rear left jack
D Rear right jack
S Supply hose
R Return hose
0001 19
US
