Eaton 5000 RT - 1 Presentation; Standard Positions

1. Presentation
1.1 Standard Positions

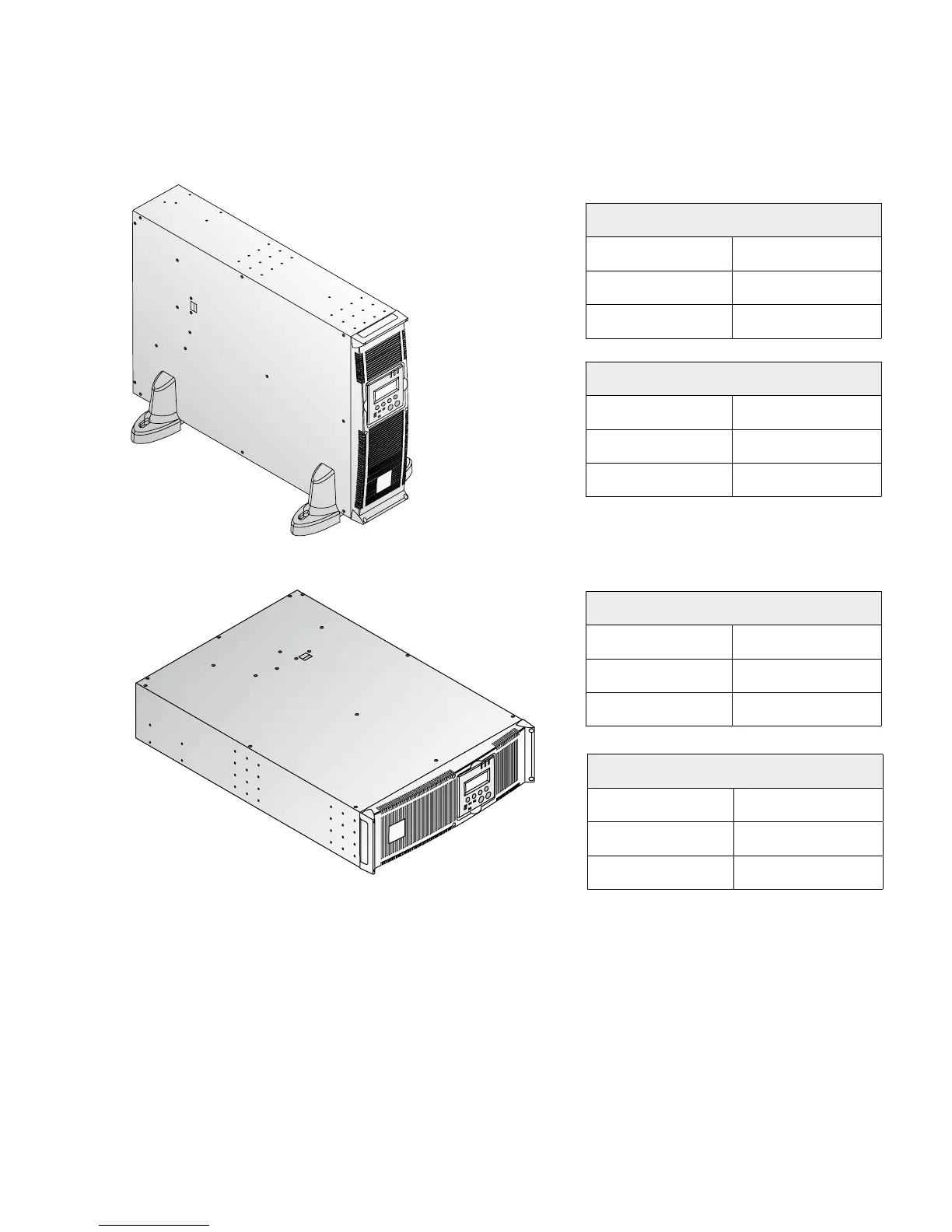

Tower Position
Rack Position
86-87050-00 A02 - Page 9
Dimensions (H x W x D) in inches/mm
MX 5000 RT
17.5 x 5.16 x 29.2/
444.5 x 131 x 741.4
MX EXB RT
17.5 x 5.16 x 25.6/
444.5 x 131 x 650
Transformer 5000
17.5 x 3.5 x 25.6/
444.5 x 88.9 x 650
Weights in lbs/kg
MX 5000 RT 125/57
MX EXB RT 154/70
Transformer 5000 84/38
Dimensions (H x W x D) in inches/mm
MX 5000 RT
5.16 x 17.5 x 29.2/
131 x 444.5 x 741.4
MX EXB RT
5.16 x 17.5 x 25.6/
131 x 444.5 x 650
Transformer 5000
3.5 x 17.5 x 25.6/
88.9 x 444.5 x 650
Weights in lbs/kg
MX 5000 RT 125/57
MX EXB RT 154/70
Transformer 5000 84/38
