2. Installation
Do not install the UPS or battery module in hermetic closed environments without any exchange of air.

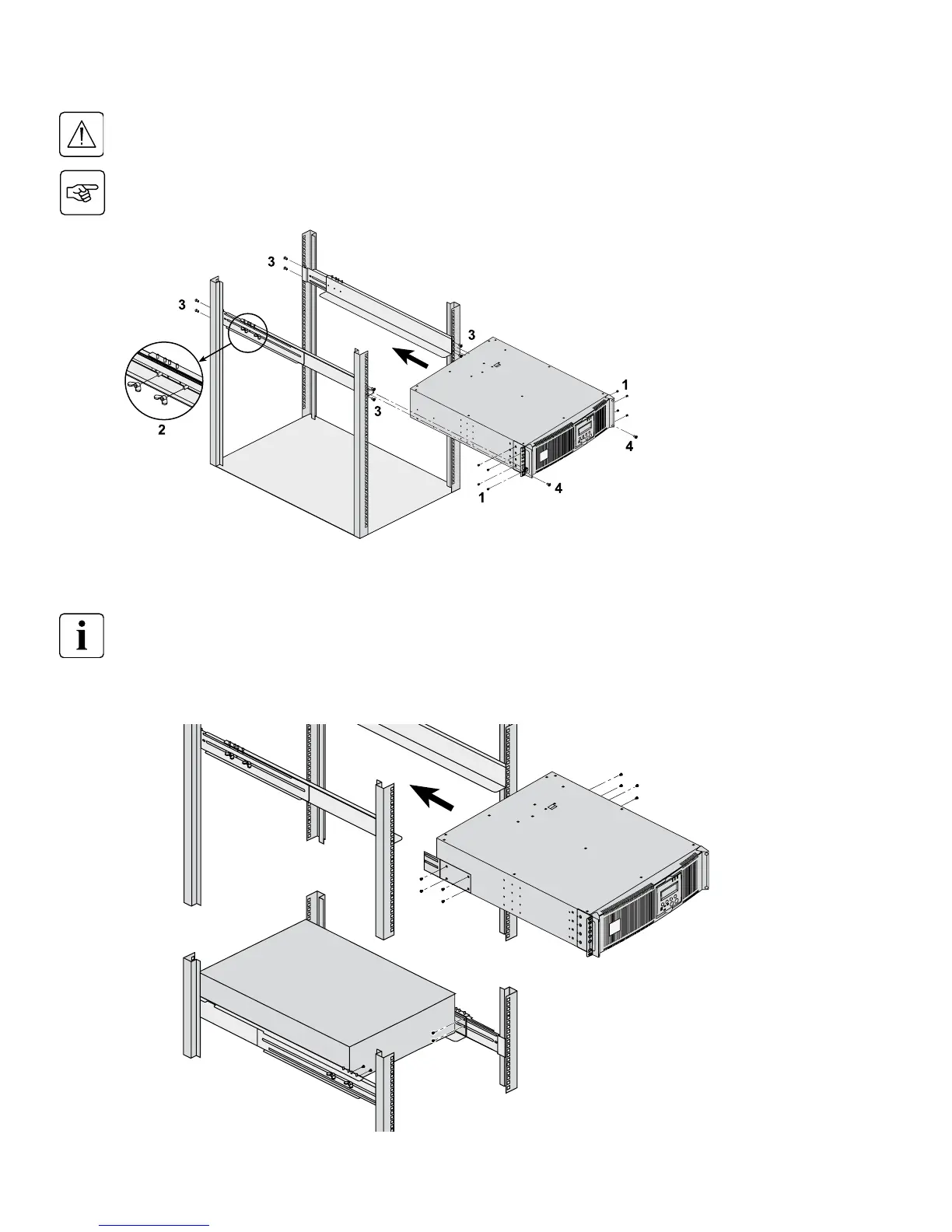

Follow steps 1 to 4 for rack mounting the UPS onto the rails.
The rails and the necessary mounting hardware are supplied by EATON.
Note for step 1: It is possible to adjust the position of both front mounting brackets.
Rear bracket system (included with rail kits)
To be used if you need to move the rack enclosure with UPS already rack-mounted inside.
