Mounting and Dimensions
C441 PROFIBUS Module User Manual MN042002EN—July 2015 www.eaton.com 7
Mounting
C441QS and C441SS
The modules are designed to be installed on the DIN rail or
panel surface by screw. Screw fixing dimensions reference
below.

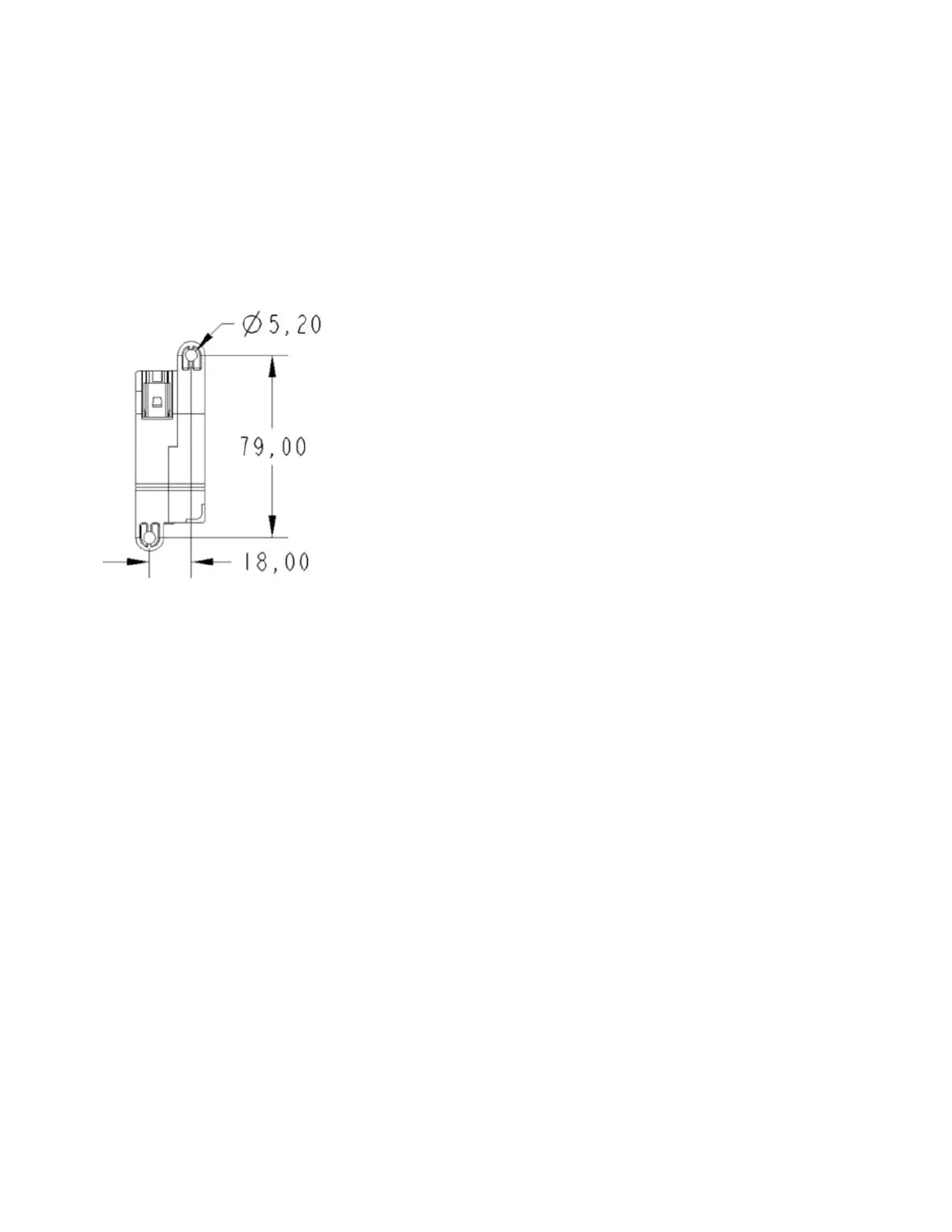

Figure 3. Mounting of Stand-Alone Model
DIN rail width is 35 mm.
