1. Introduction
The EATON ATS 30 is designed to guarantee the uninterrupted operation of sensitive equipment. It is
powered by two independent power sources and automatically makes a rapid switch form one source to
theotherwhenthepowersupplyusedtopoweritsconnectedloadfails.ThisATSisdesignedtobeefcient
and reliable.
UserscanknowpowerowandtheEATONATS30'sstatusfromtheuser-friendlyfrontpanel.Besides,
the unit has a network interface for users to read and write parameters. The network interface can be
implemented via the Ethernet protocol through an RJ45 connector. All information is available on the front
panel and the LOCAL port on the front panel is available over the network through the RJ45 connector.
2. Presentation

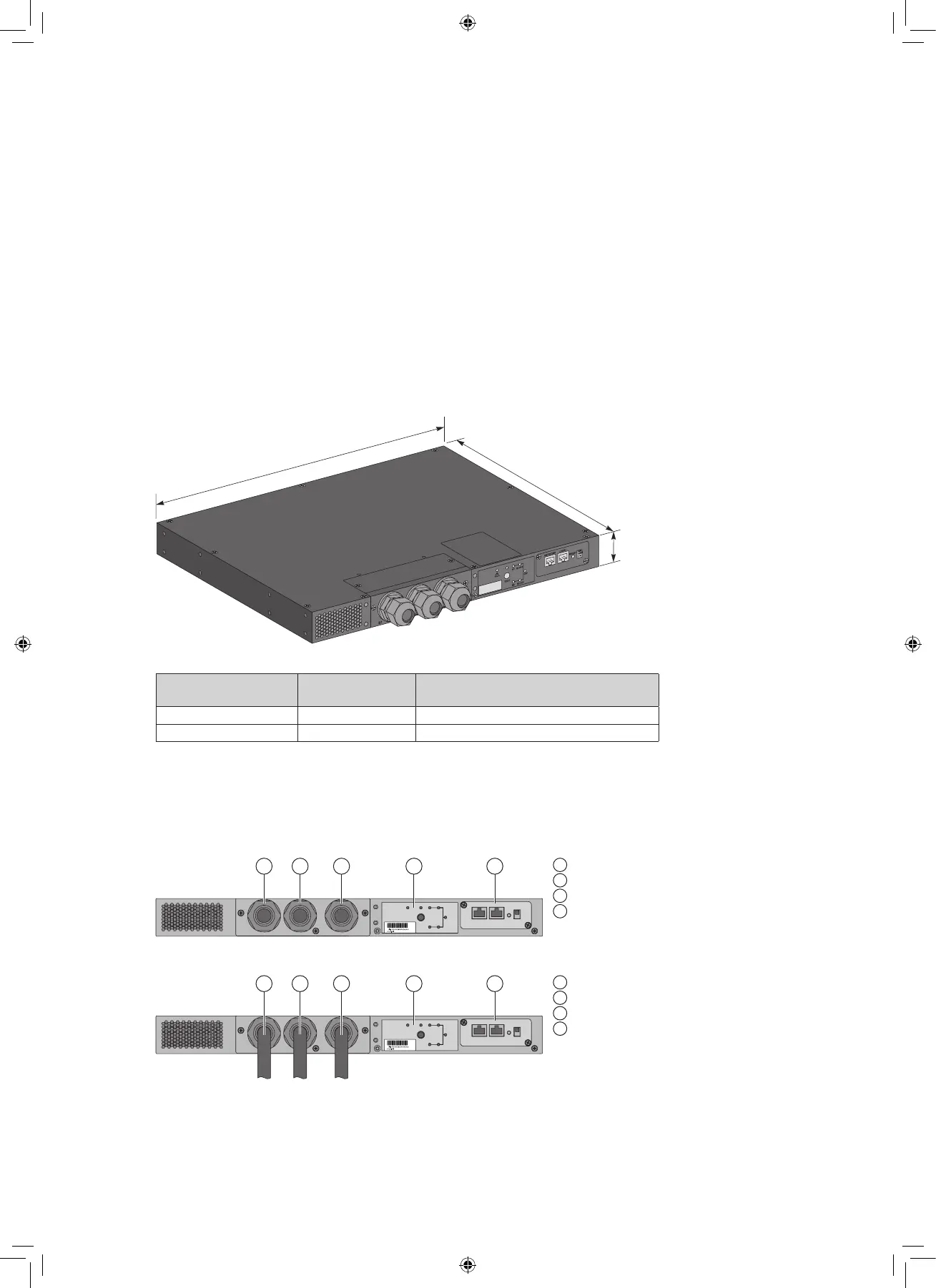

2.1 Weights and dimensions
Rack installation
D
H
W
Description Weights
(lb/kg)
Dimensions H x W x D
(inch/mm)
EATS30N - EATS30H 10.6 / 4.8 1.7 x 17.4 x 15.4 / 43 x 440 x 390
EATS30P 17 / 7. 7 1.7 x 17.4 x 15.4 / 43 x 440 x 390
2.2 Front panel layout
There are two models. Please see the following pictures.
EATS30N - EATS30H (EU)
41 21 3
1
Cable gland (input)
2
Cable gland (output)
3
User interface
4
Communication card
EATS30P (US)
41 21 3
1
L6-30P
2
L6-30R
3
User interface
4
Communication card
