Eaton EATS30N - 4 Power Cables Connection; Installation Requirements

Page 7
ATS-00_EN
ENGLISH
4. Power cables connection
4.1 Installation requirements

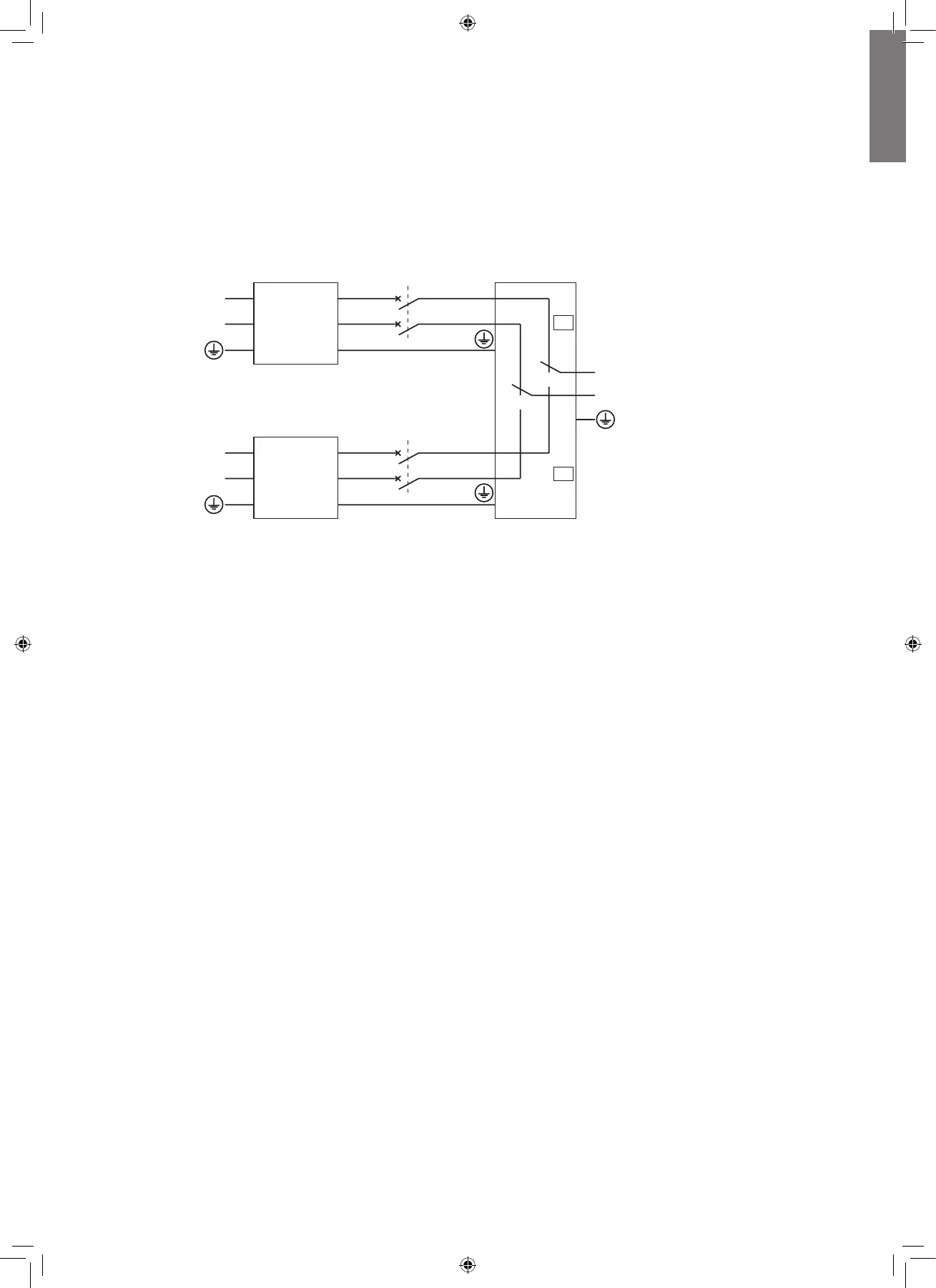

Recommended protective devices
Recommended protection
2 poles circuit breaker
L
N
L1
N2
L2
N2
L
UPS S1
ATS
N
L
UPS S2
N
S1
S2
2 poles circuit breaker
to the sensitive equipment
After power connection, the Eaton ATS will automatically perform power-on self-test. After the test, the
EatonATSwillstartsupplyingpowertoitsconnectedequipment.Youcanalsopressthe‘TestButton’to
force the Eaton ATS to execute self-test.
