Page 8
ATS-00_EN

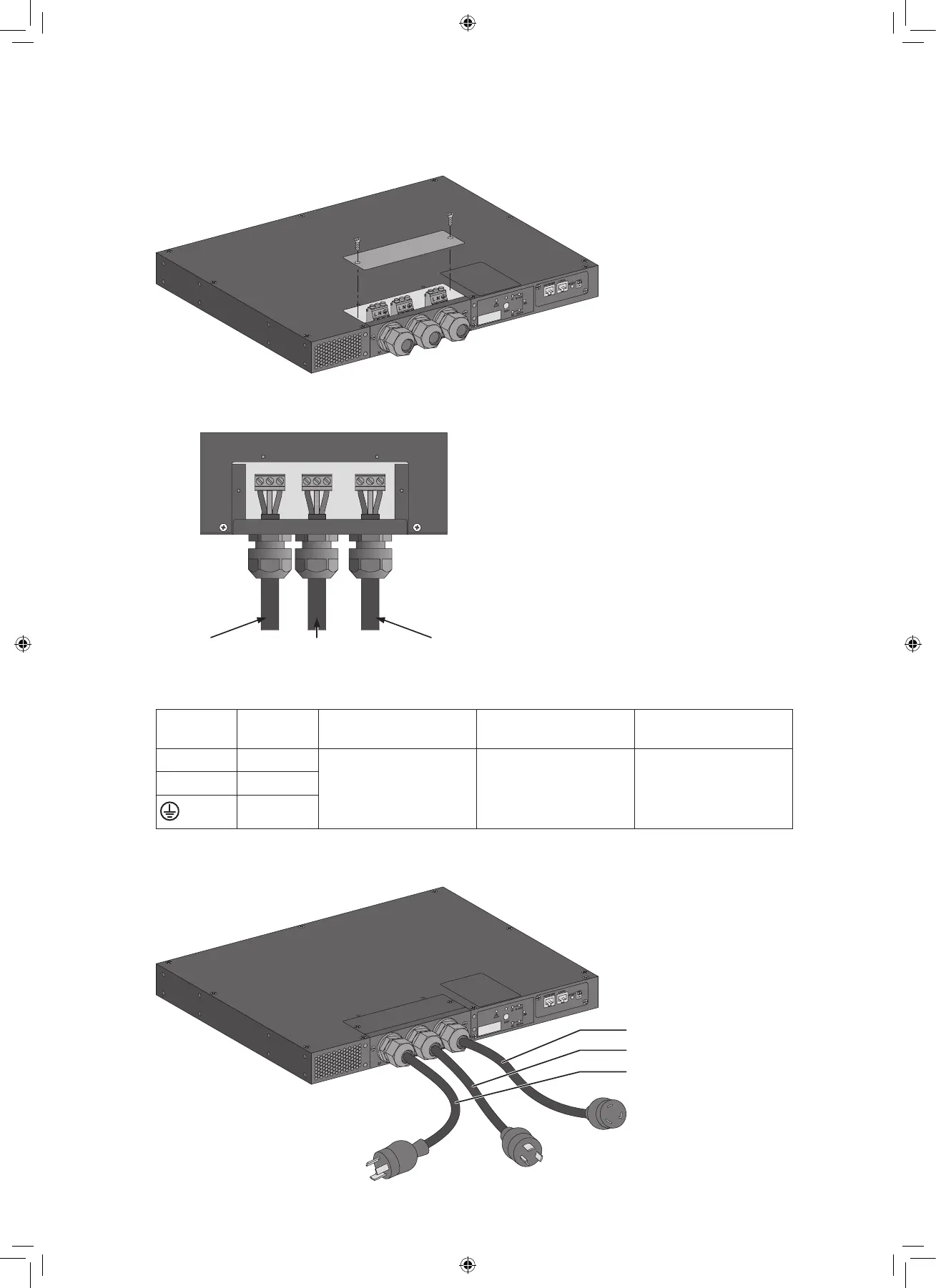

4. Power cables connection
4.2 Access to terminal blocks EATS30N - EATS30H
4.3 Hardwired Input/Output connection (EU) EATS30N - EATS30H
To loadTo UPS 2To UPS 1
1. Connect input power cables to two
UPSs (UPS1 (S1) is the preferred
source).
2. Connect output power cable to
load.
Cable cross sections
Terminal
position
Wire
function
Terminal wire
size rating
Minimum input
wire size
Tightening
torque
L1 / L2 Phase 32A 10 AWG 14Kgf-cm
N1 / N2 Neutral
Ground
4.4 Input/Output connection (US) EATS30P
To load
To UPS 2
To UPS 1
