Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09 7

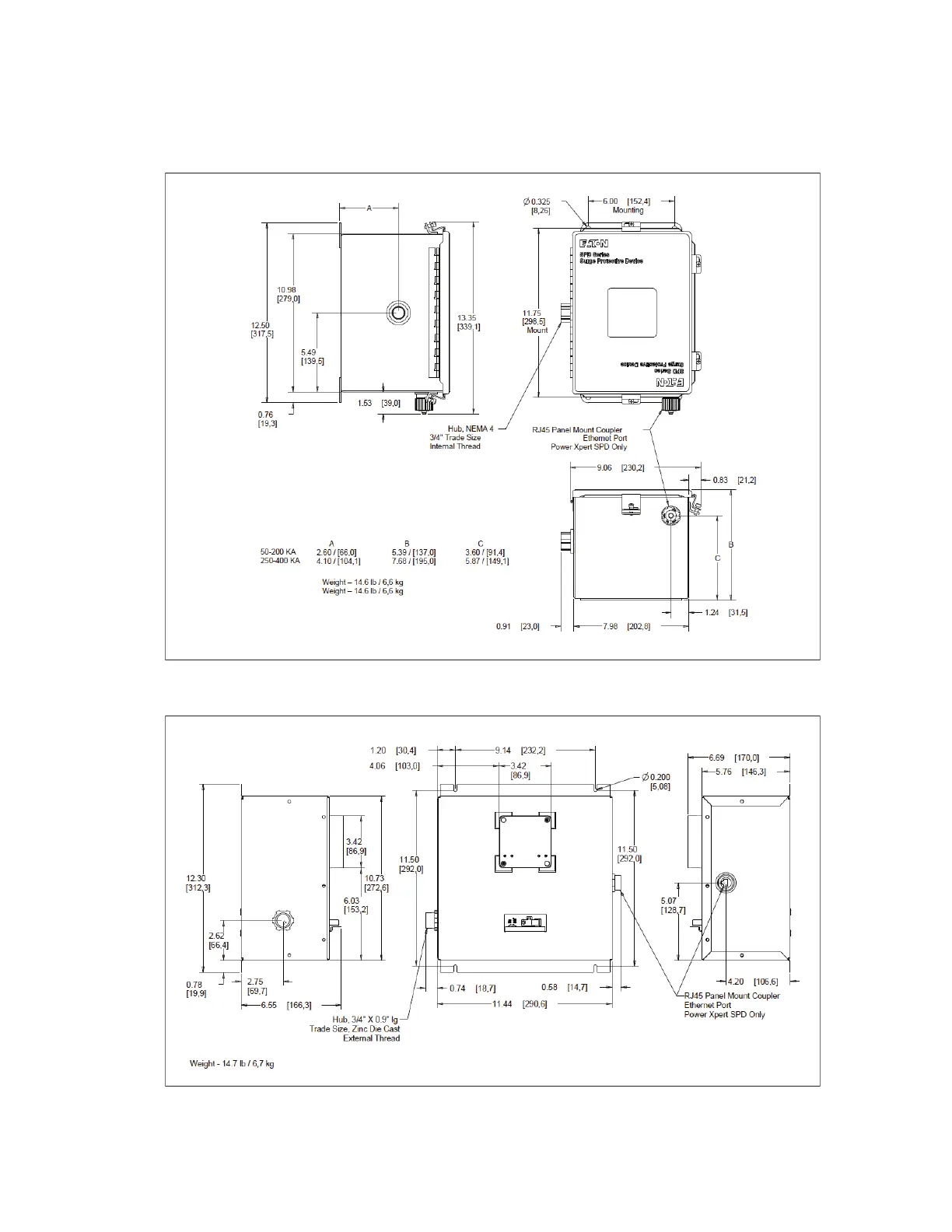

FFiigguurree 55.. NNEEMMAA 44 -- 44XX ((ssuuffffiixx NN,, PP)) ((NNEEMMAA 44XX nnoott aavvaaiillaabbllee wwiitthh PPoowweerr XXppeerrtt SSPPDD))

FFiigguurree 66.. NNEEMMAA 11 ((wwiitthh ddiissccoonnnneecctt)) ((ssuuffffiixx MM))

Installation

Other manuals for Eaton SPD Series

Questions and Answers:

Need help?

Do you have a question about the Eaton SPD Series and is the answer not in the manual?

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
