1. Plug one end of a Cat5e Ethernet cable into the SPD and the other into a laptop PC which is connected to a
network.
The device comes from the factory with the default IP address listed below but can also be set up for
dynamic IP (DHCP) or a user defined Static IP address.
DDeeffaauulltt IIPP aaddddrreessss iiss: 192.168.1.254
DDeeffaauulltt uusseerr: admin
DDeeffaauulltt ppaasssswwoorrdd: Admin*1
2. Open Google Chrome, or Internet Explorer 11.x or higher and enter the fixed IP address 192.168.1.254 and
then hit the Enter key.

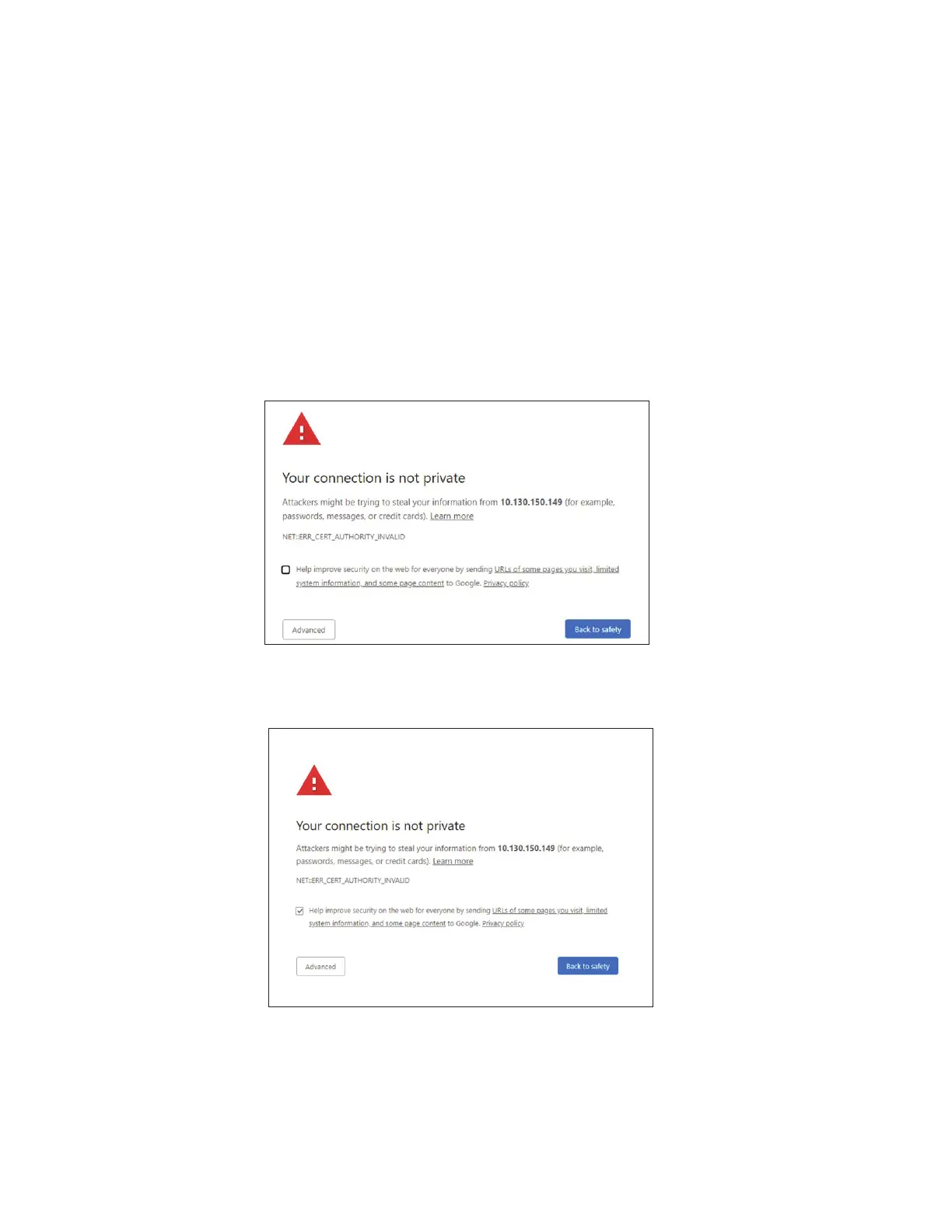

A connection warning window will open.
3. Click on Advanced.
4. Click on “Proceed to…” near the bottom of the window.
Power Xpert SPD User Setup

Eaton SPD Series Specifications

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
