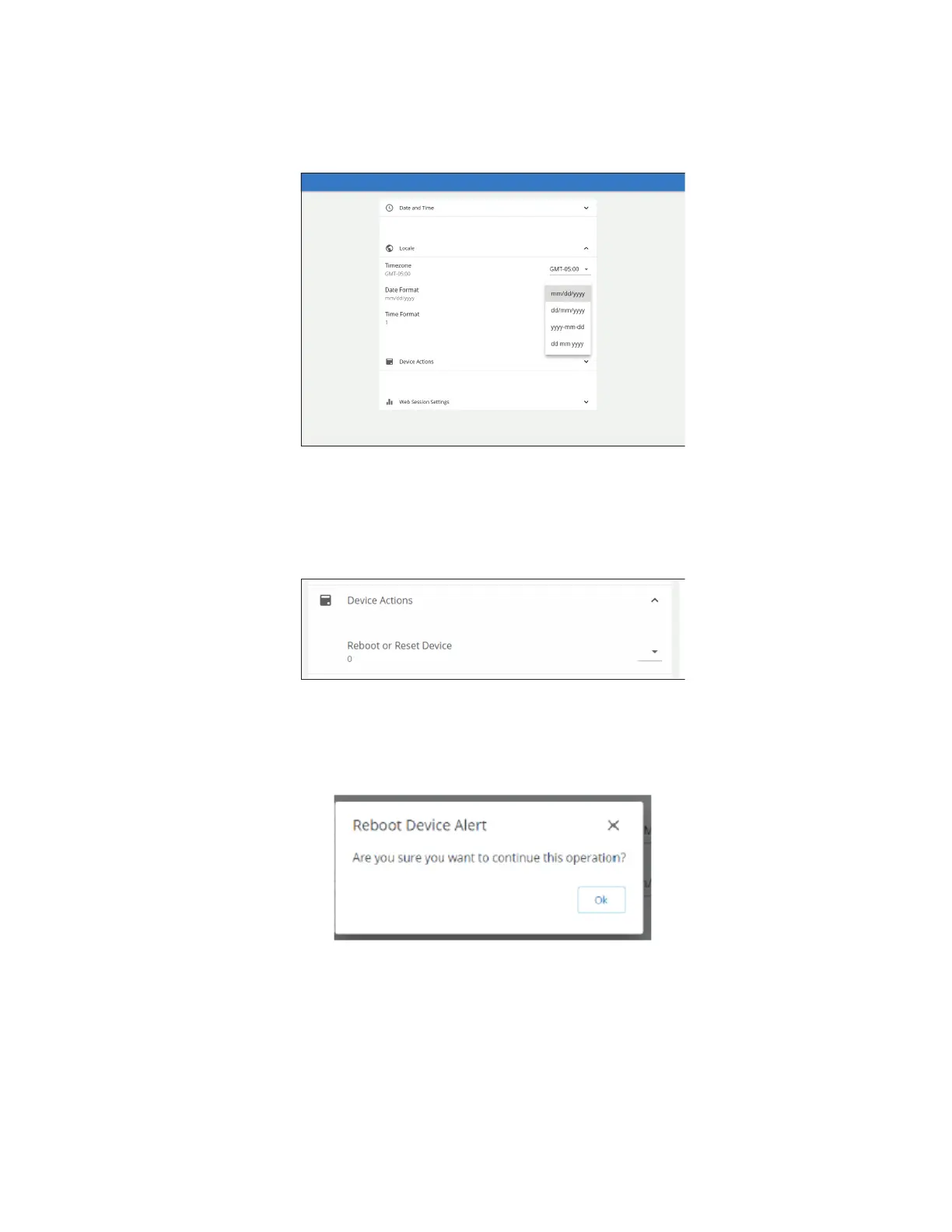

FFiigguurree 4488.. SSeelleecctt TTiimmee FFoorrmmaatt
Device Actions has two options for the Admin user. Reboot or Reset Device. Reboot is a soft reset, the micro
controller will power down and power up. Reset is a hard reset which will reset the device to factory defaults.
Either action can only be conducted by an Admin user.
FFiigguurree 4499.. DDeevviiccee AAccttiioonnss
The user will be prompted before either of these actions. Click the "X" in the top right of the window to cancel
this action.
FFiigguurree 5500.. RReebboooott DDeevviiccee AAlleerrtt
The Admin user can modify timeouts, number of concurrent sessions and the number of failed login attempts.
Power Xpert SPD User Setup

Eaton SPD Series Specifications

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
