Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09 37
Communication setting changes require a reboot of the micro controller to enable it.

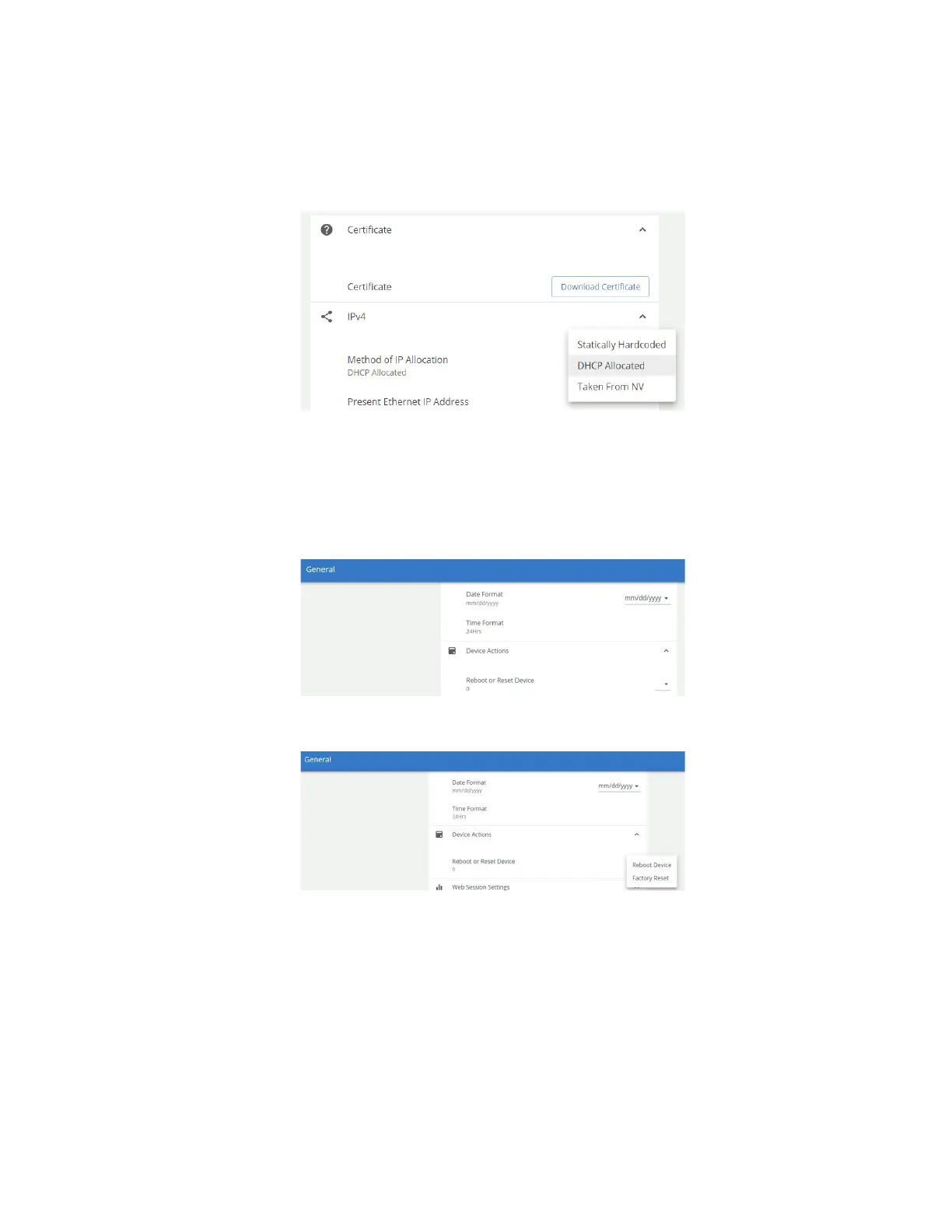

FFiigguurree 5533.. MMeetthhoodd ooff IIPP AAllllooccaattiioonn
IIPP ccoonnffiigguurraattiioonn cchhaannggeess rreeqquuiirree aa rreebboooott ooff tthhee ddeevviiccee
To initiate a soft reset from the WebUI, go to the general tab and click on the down arrow across from reboot or
reset device as shown below.
FFiigguurree 5544.. SSeelleecctt oonn DDoowwnn AArrrrooww
FFiigguurree 5555.. CClliicckk oonn RReebboooott DDeevviiccee
Click OK to verify that you want to continue with this operation. The LEDs on the display will turn off, then back
on again to indicate that this command has been implemented.
Power Xpert SPD User Setup

Eaton SPD Series Specifications

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
