6.3.8. Operations -> Read
Function reads data saved in memory of GPRS module. Exchange of data follows on
port selected in section “Select Connection Type” (See below description of option
”Configuration”). Correct reading is confirmed with message on a screen. Data
downloaded from device may be saved on file (see clause 6.3.3) and use for other
devices.
To use this function it is necessary to define type and parameters of connection.

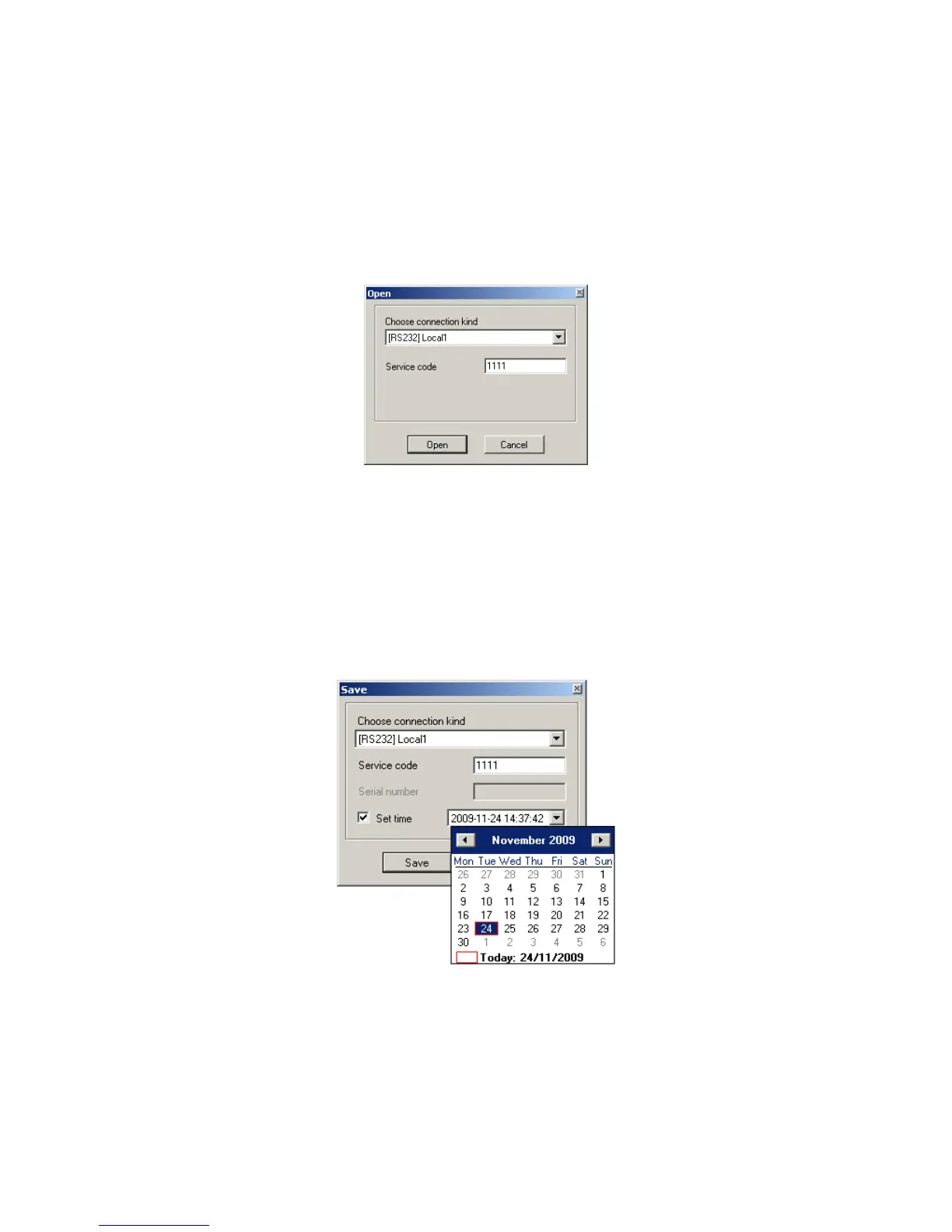

E.g. for local connection the following view is displayed:
where:
Connection kind - serial port to which module is connected
Access code- service code of transmitter
Detailed description of connections configuration is included in clause 6.3.5.
6.3.9. Operations -> Send
This function is analogical to the above one, at the same time it enables data saving
into EEPROM module. Correct saving is confirmed with message on a screen.
