7.11. DEVICE MONITOR

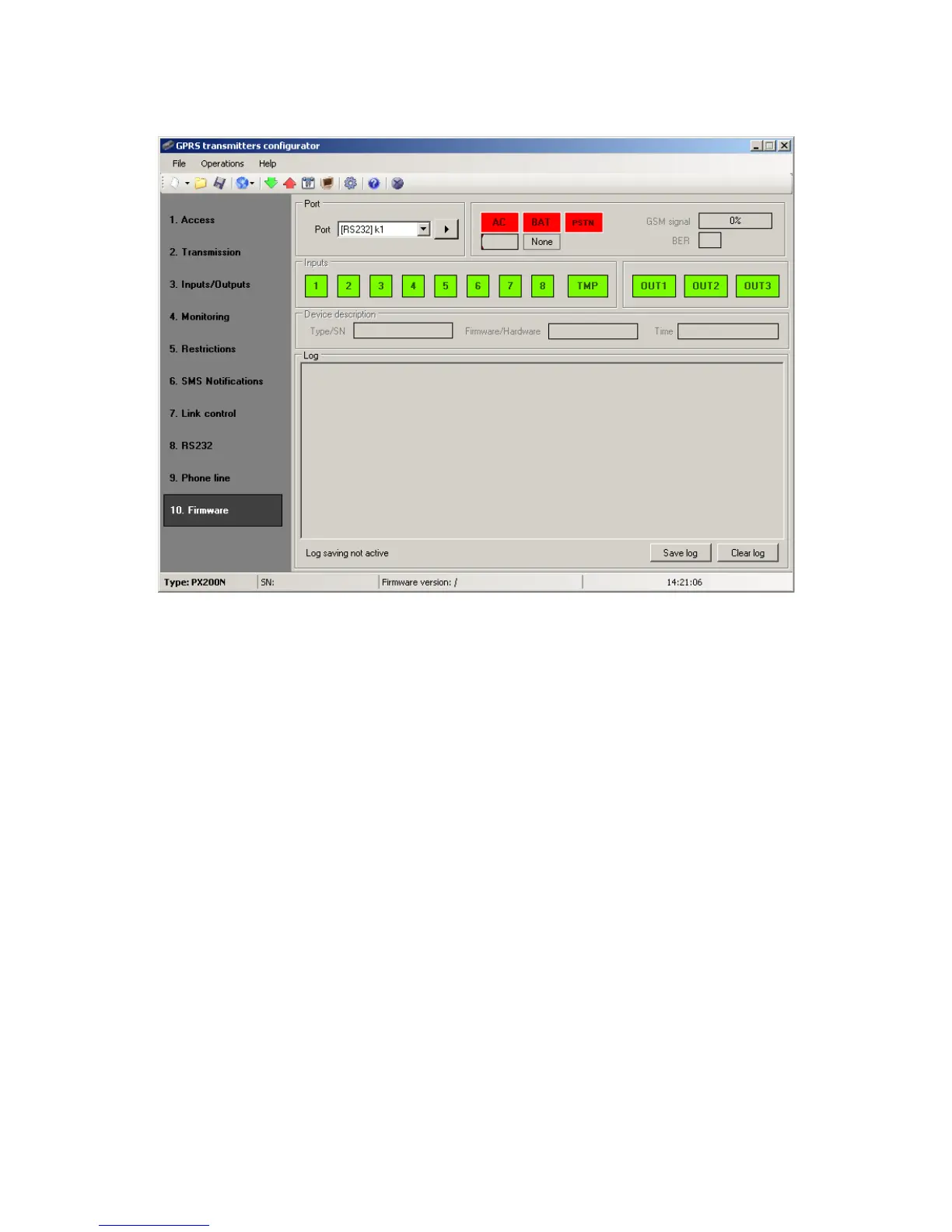

“Device Monitor” provides real-time information on device state. To use this function
device must be connected to PC computer with LX-DATA cable (using DEBUG plug).
Correct RS232 port must be chosen in “Port” field. “Device monitor” provides
following information:
• AC power indication
• Battery power indication
• PSTN line indication
• GSM network signal level indication
• Bit-Error-Rate level measuring
• Inputs and outputs state monitoring
• Type or serial number of device
• Firmware and hardware revision
• Device time
These parameters are also shown in LOG window in text style. All data can be saved
to file.
Note: Outputs OUT1 and NC-NO-C in the Device Monitor window are presented as,
respectively, OUT1 and OUT2.
