7.8. RS-232

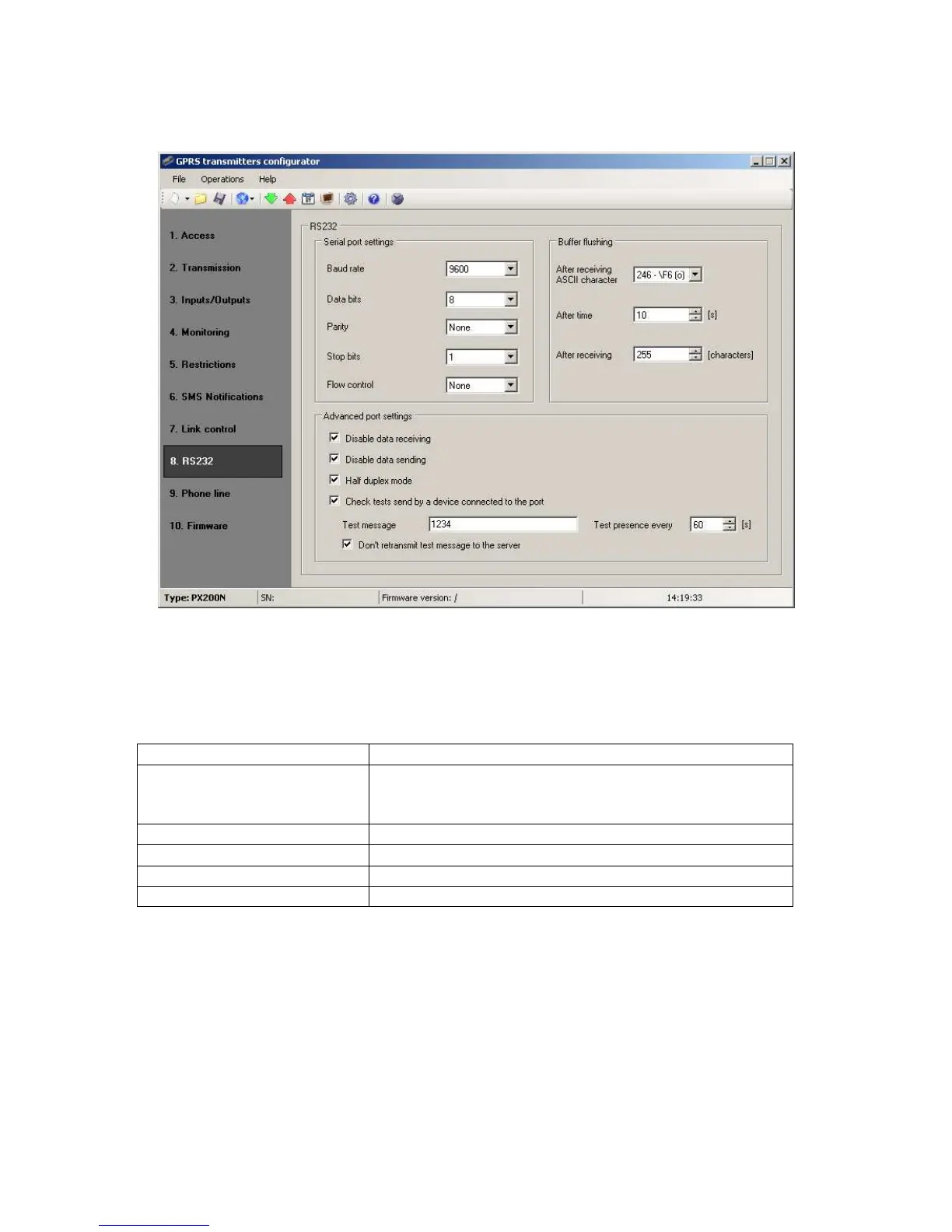

7.8.1. Serial port settings
The device has been equipped with RS-232 serial port to enable obtaining additional
information. To make use of this link it is required to define its parameters. For this
purpose select parameters from the below table:
Parameter Value
Baud rate (bits/sec)
300,1200, 2400, 4800, 9600, 19200, 3840
0,
57600,
115200.
Data bits
5, 6, 7, 8
Parity
None,
even, odd, mark, space
Stop bits
1,2
Flow control
None, RTS, CTS, RTS/CTS
The selected parameters shall correspond to RS-232 port settings in device, with
which the transmitter is to cooperate.
7.8.2. Buffer flushing
Data received from connected device are stored in transmitter buffer. Buffer
capacity is 511 bytes. Define criteria that meeting shall mean data transmission to
monitoring system transmitter. The following options are available:
- After receiving ASCII character
- After expiry of defined time
- After receiving defined amount of characters
