Ecom j2kn pro - MEM CO Sensor

Page 31

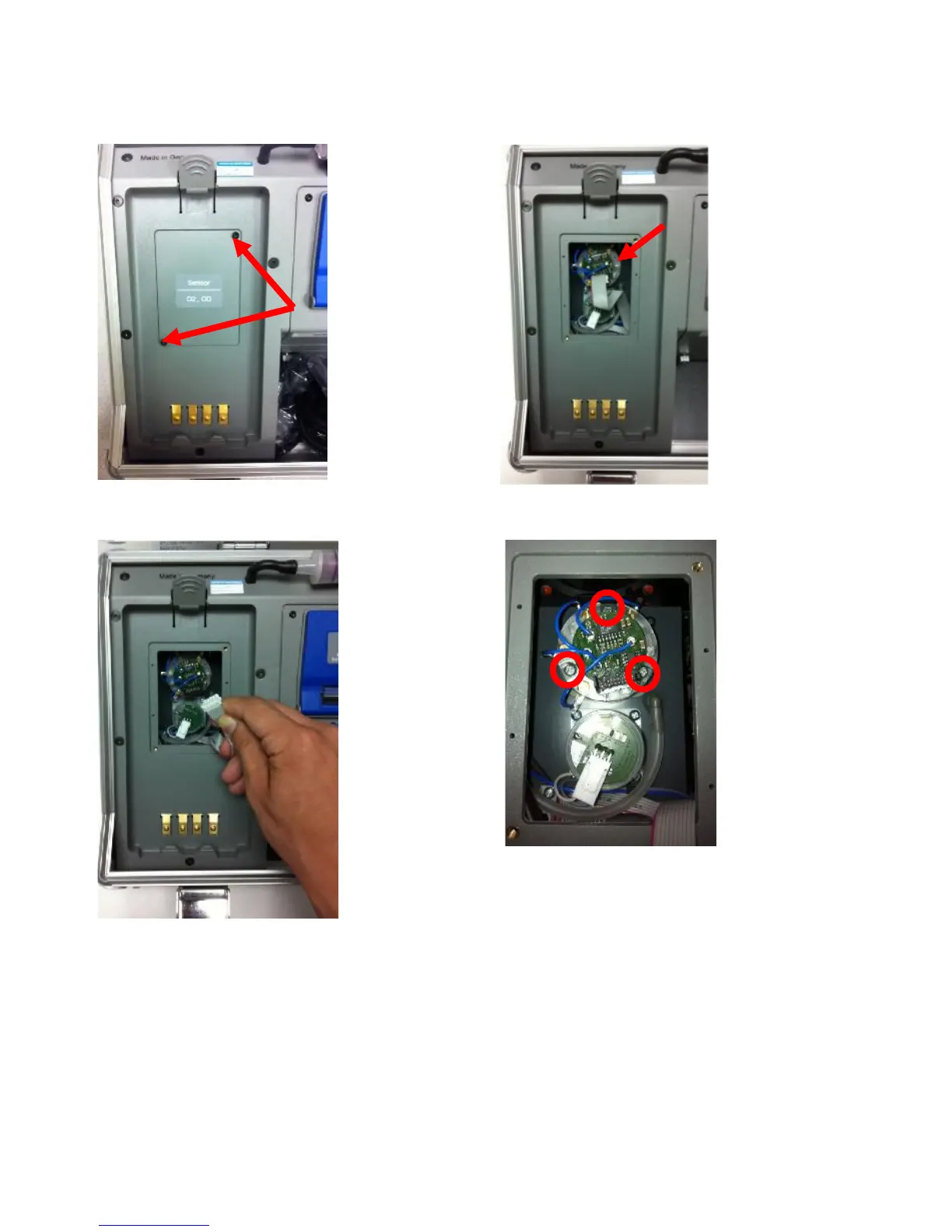

15.3 How to Change MEM CO Sensor
Step 1:
Use T-10
torx wrench
to remove
screws from
O2/CO
cover plate
Step 2:
The MEM CO
sensor is
shown here
Step 3:
Disconnect
ribbon
cable from
CO sensor
Step 4:
Remove 3
screws
shown here
using a
phillips head
screwdriver
Pull sensor
directly out
Step 5: Insert new CO sensor, replace 3 screws, and tighten until snug
Step 6: Replace ribbon cable
Step 7: Replace O2/CO cover plate & tighten screws with T-10 torx wrench
Step 8: Calibrate your new CO sensor using certified calibration gas
