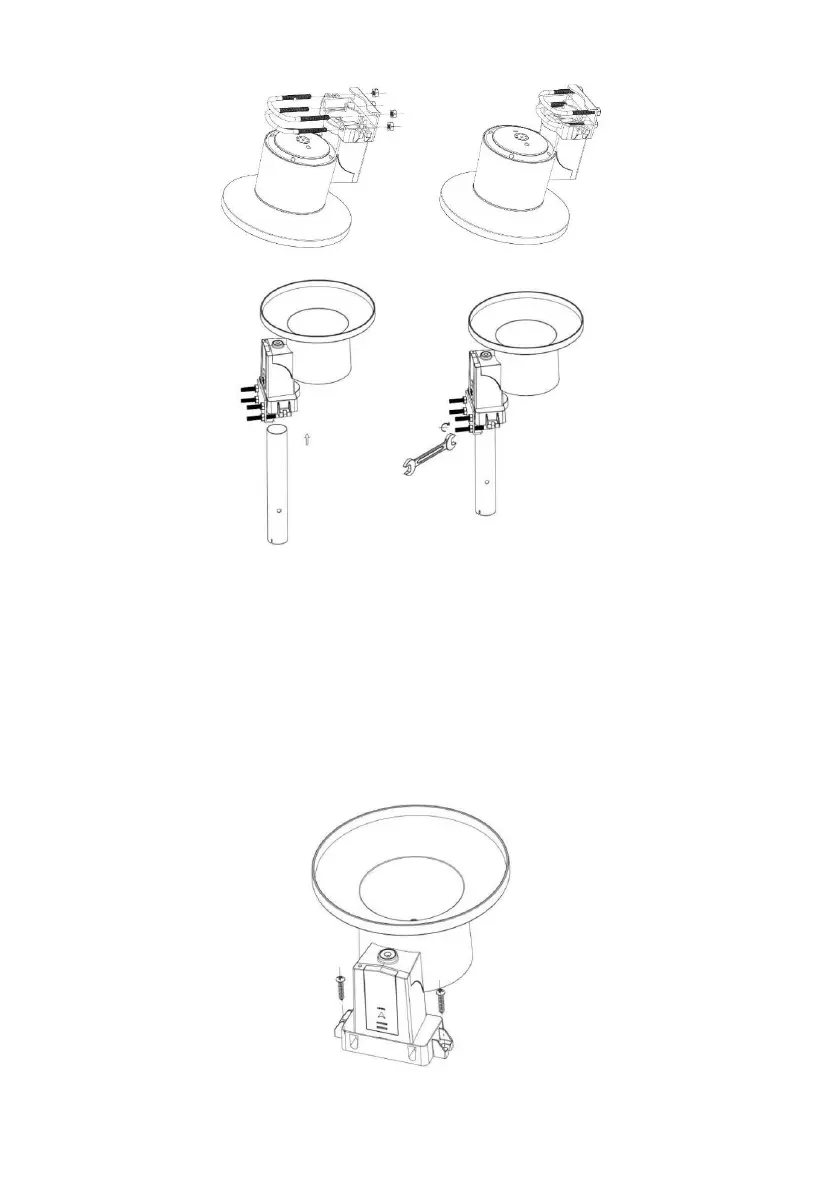

Figure 17: Rain gauge installation with U-bolts
Note: Use the bubble level one the side of the rain gauge as a guide to verify that
the sensor is leveled (for proper measurements).
4.3.4.3 Mounting with screws
The mounting assembly also includes two screws for installation on a flat
surface.
Figure 18: Rain gauge sensor mounting with screws installation diagram
