2 - 4 AG45134 Rev. 3
The Input Tray
The input tray is used to position the plate for exposing. The
plate is placed on the input tray and gently slid to engage the
registration pins. A groove is provided in the surface of the input
tray to provide a convenient place to push the plate forward. A
plate cannot be loaded until the previous plate has been
completed.
The Pinch Roller Bar
The pinch roller bar is used to open and close the pinch rollers.
These high precision rollers control the plate during exposing.
The pinch roller bar must be up (pinch rollers open) to load a
plate and down (pinch rollers closed) to expose a plate.
Never raise the pinch roller bar while a plate is being
exposed!
Doing so will cause the plate to jam inside the
platesetter if you are using an edge-registered pin bar.
Note: The pinch roller bar must be up during the initialization
process after a power on.

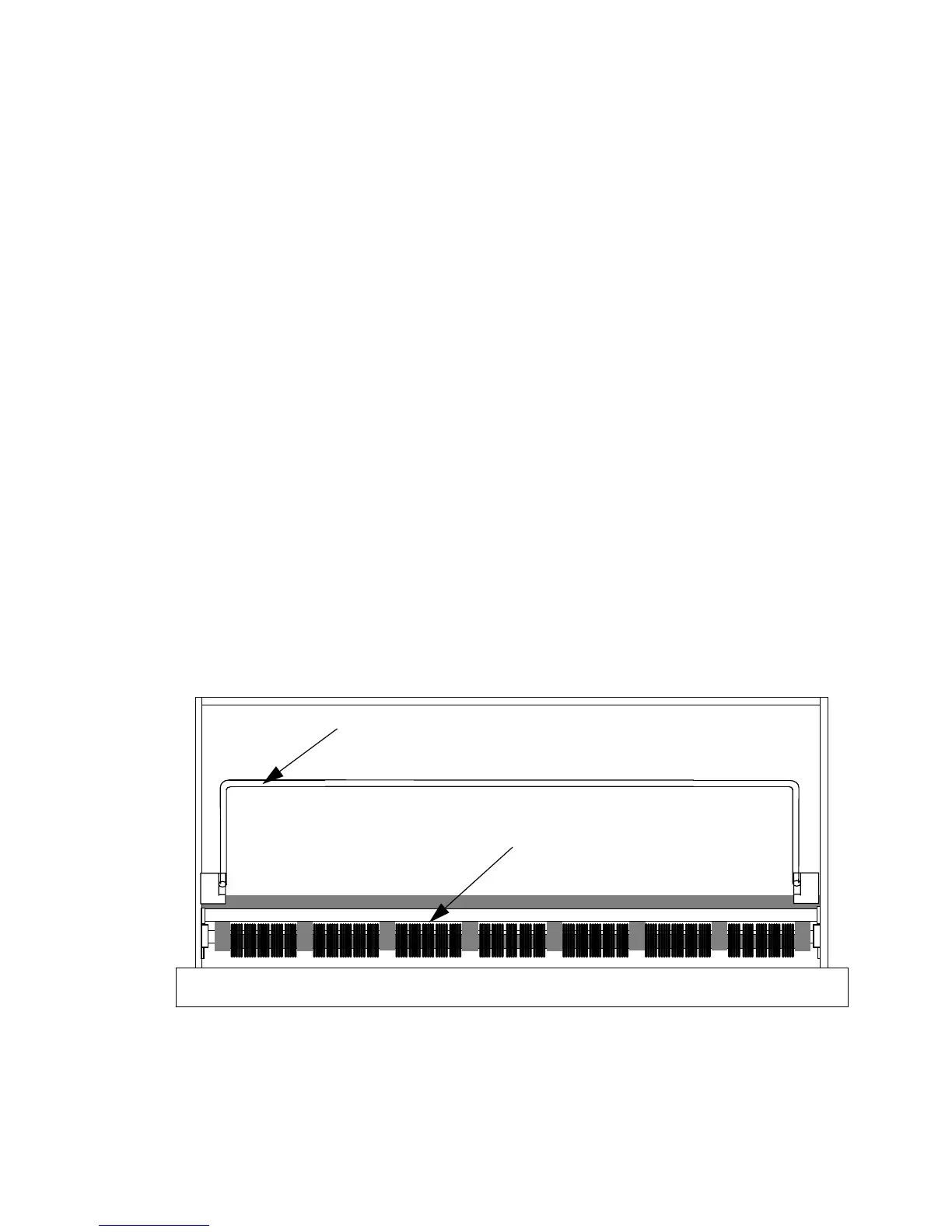

Figure 2-3 Pinch Rollers
PINCH ROLLER BAR *
PINCH ROLLERS
* SHOWN IN THE UP (OPEN) POSITION
