The Power Cord
The power cord plugs into a receptacle located just below the
power switch.
Note: In order for the system to work properly, the platesetter,
the CtServer computer, and the computer monitor must
all
be plugged into the system power conditioner. Be advised
that if the devices are not plugged into the power condi-
tioner, damage resulting from voltage spikes, brownouts,
etc., will NOT be covered by the warranty.
The Pin Bar
The pin bar is used for plate registration. There are two types of
pin bars: press notch registered and edge registered. Two pin
bars come with the system as standard equipment. Additional
pin bars can be ordered as an option. Exposing sets of plates
with different registration notch requirements is easily
accomplished by changing the pin bar.

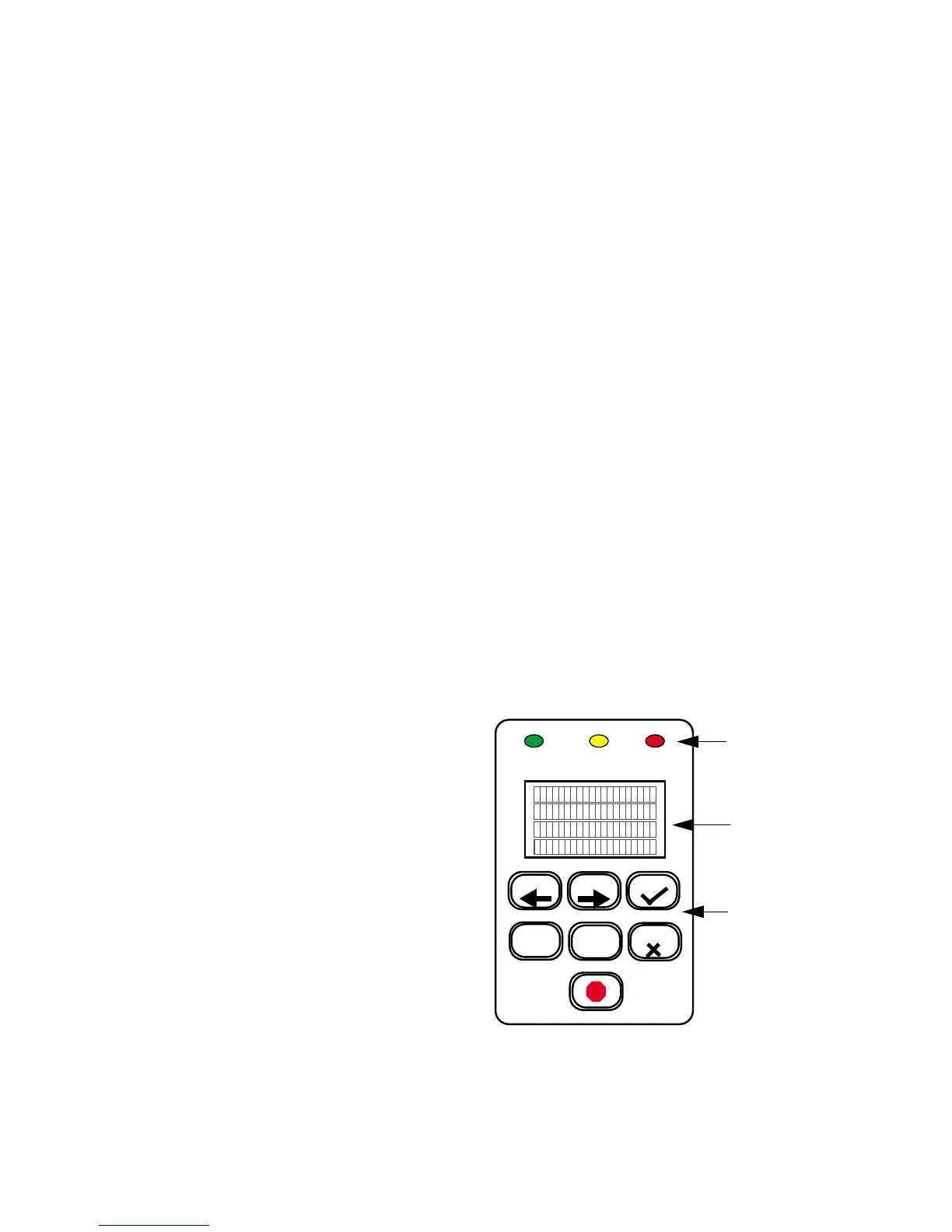

The Control Panel
The control panel allows
you to interact with the
platesetter. Commands
and options are
controlled through this
device.
PREV NEXT
MENU
SELECT
LCD
OK
CANCEL
keypad
EXPOSE
ERROR
ATTENTION
LEDs
Figure 2-2 Control Panel
