8 ECTIVE CSI & SSI Series
Übersicht der Bedienelemente

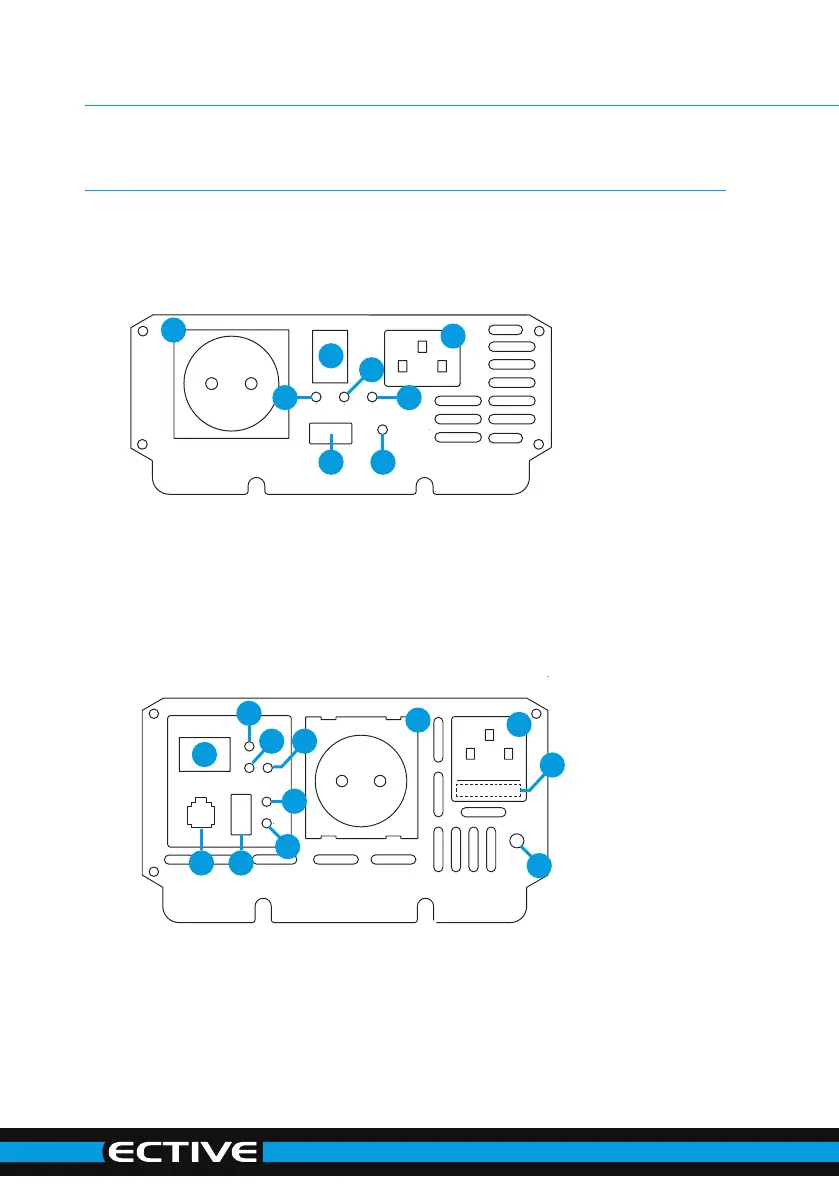

Die Abbildungen zeigen die wichtigsten äußeren Bauteile und Anschlüsse.
Frontansicht: CSI 3
1. Schalter AN/AUS
2. LED „Fehler“
3. USB-Buchse
4. Schutzerdung
5. Landstrom
6. LED „Inverter
7. LED „AC-Charge
8. 230 V Schuko-
Steckdose
Frontansicht: CSI 5 und CSI 10
1. Schalter ECO/OFF/UPS
2. LED „Power
3. LED „Fehler“
4. LED „Charge
5. LED „AC-In
6. LED „By-Pass“
7. Anschluss
Fernbedienung
8. USB-Buchse
9. Anschluss Landstrom
10. Sicherung
11. Schutzerdung
12. 230 V Schuko-
Steckdose
3 4
5
2
1
1
9
3 4
10
6
8
7
7 8
2
5
6
11
12
