Versatrax 100™
Document: UMDT013103.docm
Revision: A13
Created by: KJB
Date: 15 Oct 2019
3070984-A13
Page 12 of 47
User Manual

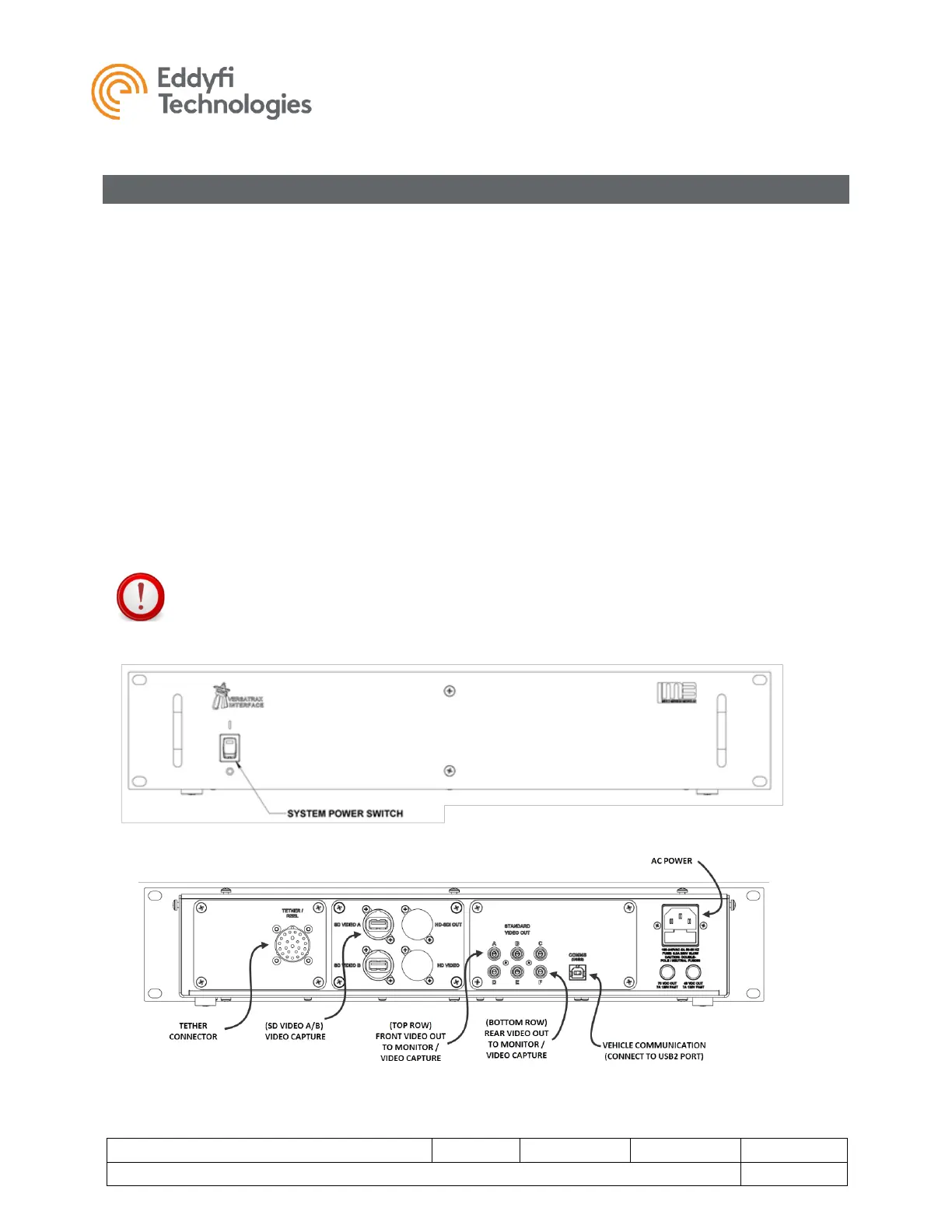

Interface Box Connection
To set up an PC based control system with an Interface box, do the following;
Set-up:
1. Connect the interface box to AC power using an equipment power cord.
2. Connect the tether (or reel deck cable).
3. Connect the communication port to the control computer using a USB cable.
4. Connect video equipment as needed (monitors, recording devices, etc).
a. Front camera: Top row RCA jacks A, B, C.
b. Rear camera: Bottom row RCA jacks D, E, F.
The interface box may be ordered with optional features such as video capture to USB or video format
conversion. Additional connectors may be present on the rear center panel of the enclosure.
1. Connect SD Video A port to control computer using USB3 cable for front camera video capture.
2. Connect SD Video B port to control computer using USB3 cable for rear camera video capture.
IMPORTANT: USB3 cables are required for video capture (SD VIDEO A / B) to maintain video
quality.
