Rear Camera

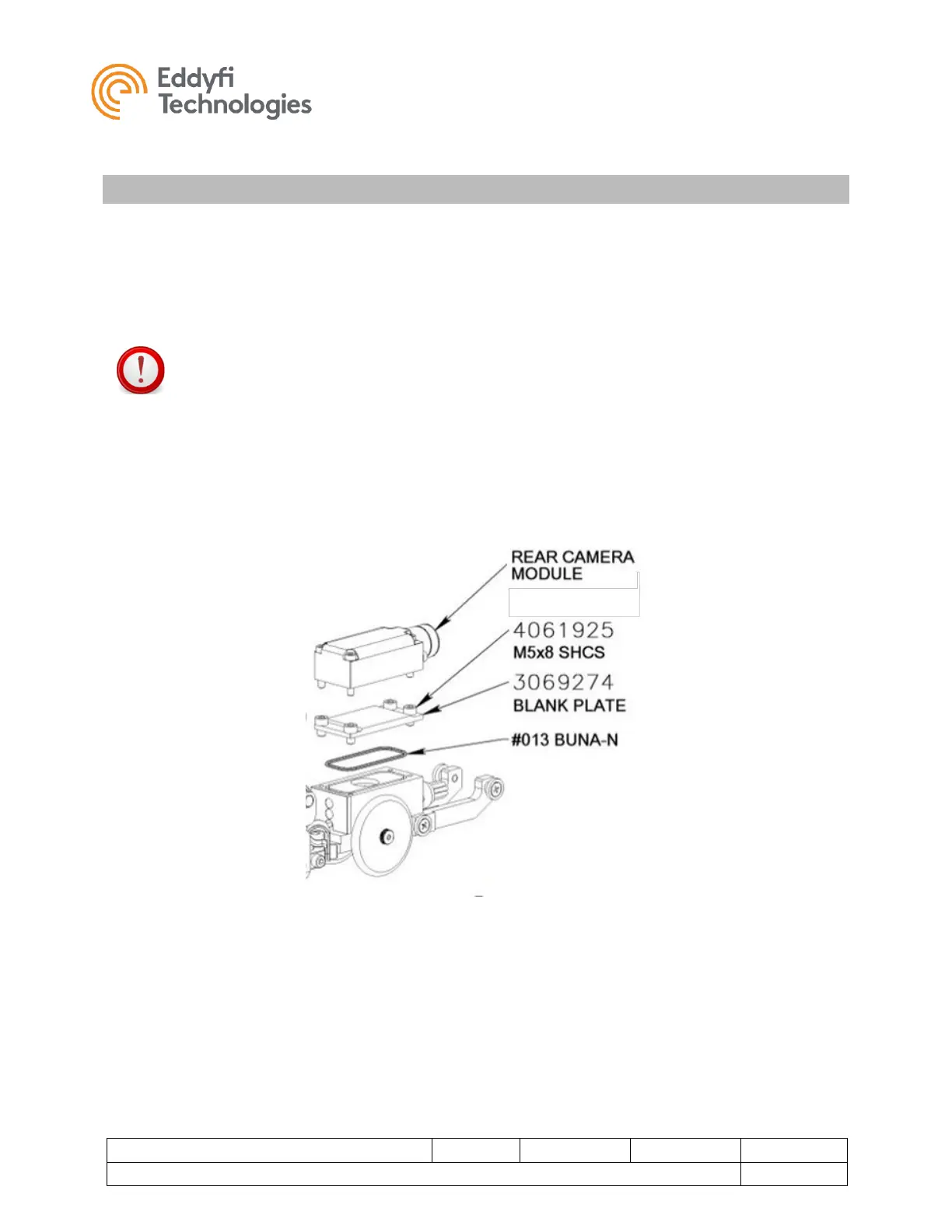

An optional rear camera may be installed on the in-line vehicle.
No camera: Install the blank plate as shown below. The wired camera connector will be stowed in the
counter-bored hole under the lid.
IMPORTANT: When reinstalling the camera or blanking plate, always inspect the O-ring and
replace if damaged. Grease the O-ring with Molykote 111 before installation.
Rear camera: Remove the blank plate. Plug the camera connector wiring into the rear camera module.
Screw the module in place, ensuring the O-ring is clean and fully seated in its groove. Camera modules
come aligned from the factory. If further adjustment is required to level the image, slightly loosen the two
screws holding on the camera lens and rotate until the image is level.
