User Manual
Vehicle Configuration
Parallel Configuration
Track Angle Adjustment

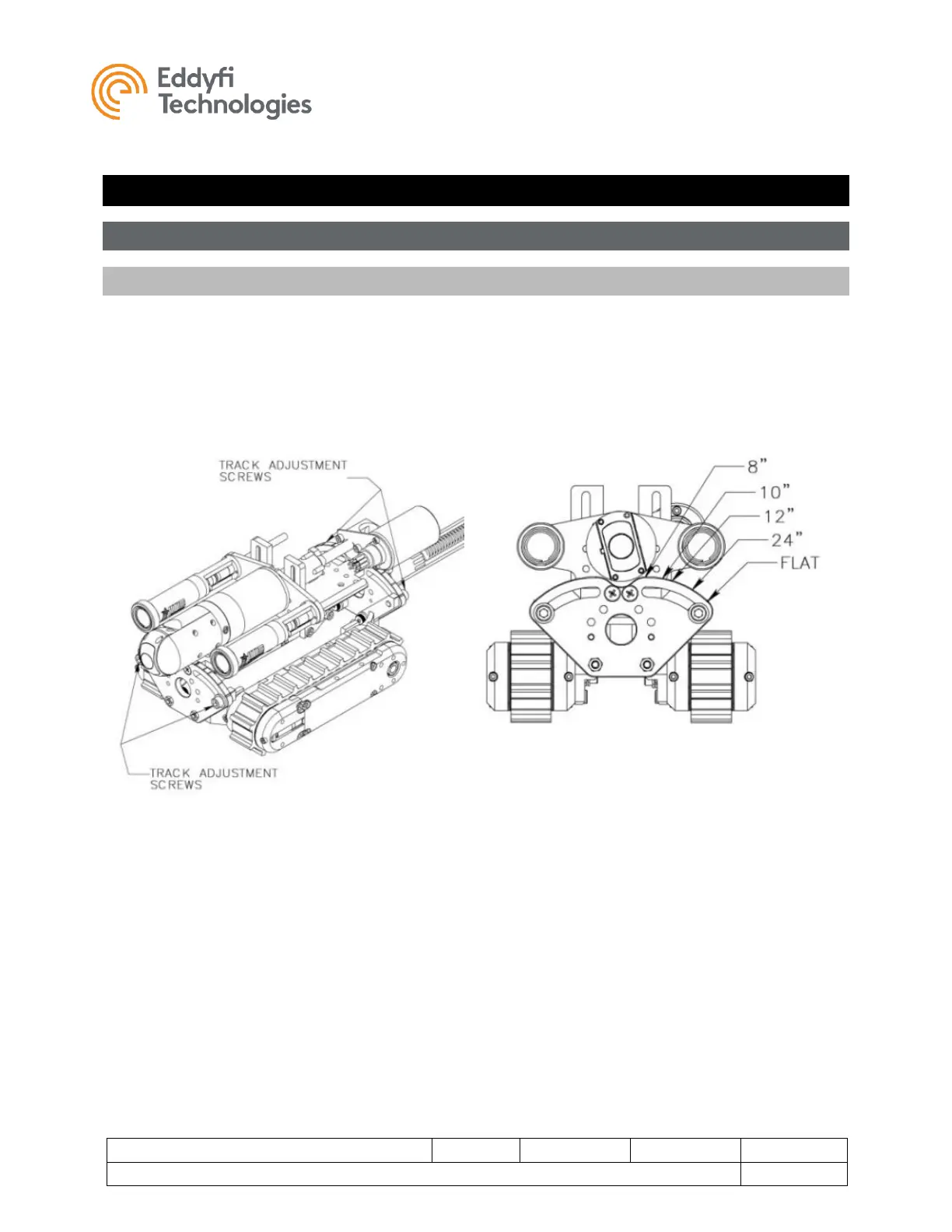

The parallel chassis’ track angle may be continually adjusted from flat to 200 mm (8 in) ID pipe. To
change the track angle, loosen the four M6 socket cap screws located in the end plate slots, move the
track to its new angle, and retighten the screw. Indicator marks have been placed on the end plates for
200, 250, 300, and 600 mm (8, 10, 12, and 24 in) and FLAT configurations
