User Manual
Camera & Light Installation

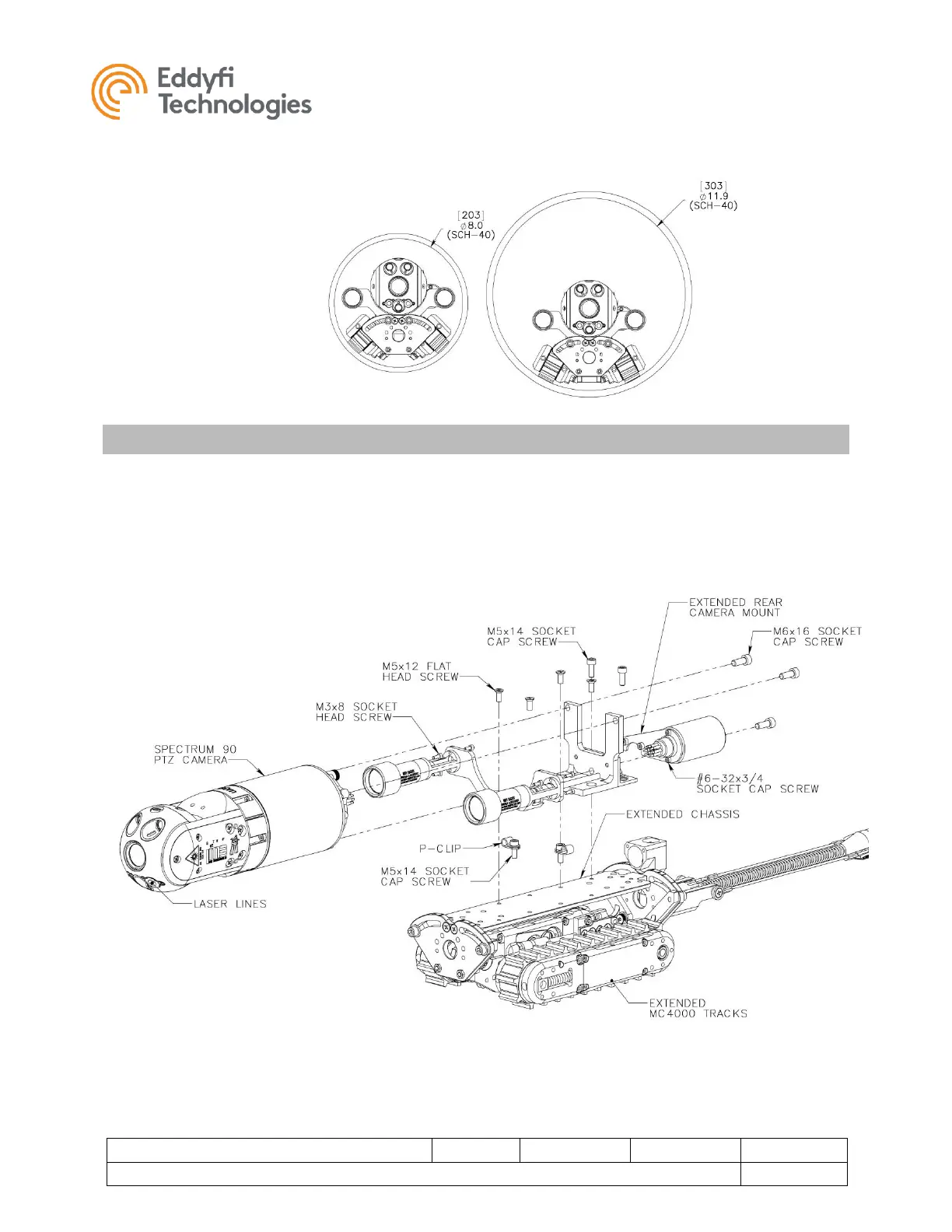

The front SP90™ camera is mounted to the vehicle using M6 x 16 mm SHCS. The camera is oriented
with the Schrader valve on the back of the camera facing up. Additional lighting is provided by the two
801 Lights, installed using M3 x 8 mm SHCS. Spacers move the lights forward to beside the camera. The
rear facing camera uses an extended mount (from the factory) to prevent cabling interference with the
Spectrum 90 camera. Use Loctite 243 (blue) with all fasteners.
