User Manual
Microtrac Mounting
The Microtracs™ are removed or installed onto the vehicle using four M5 x 8 mm SHCS. The track whip
connector must be fully mated (finger tight only), and the whip secured on place on the chassis using the
provided P-clips.

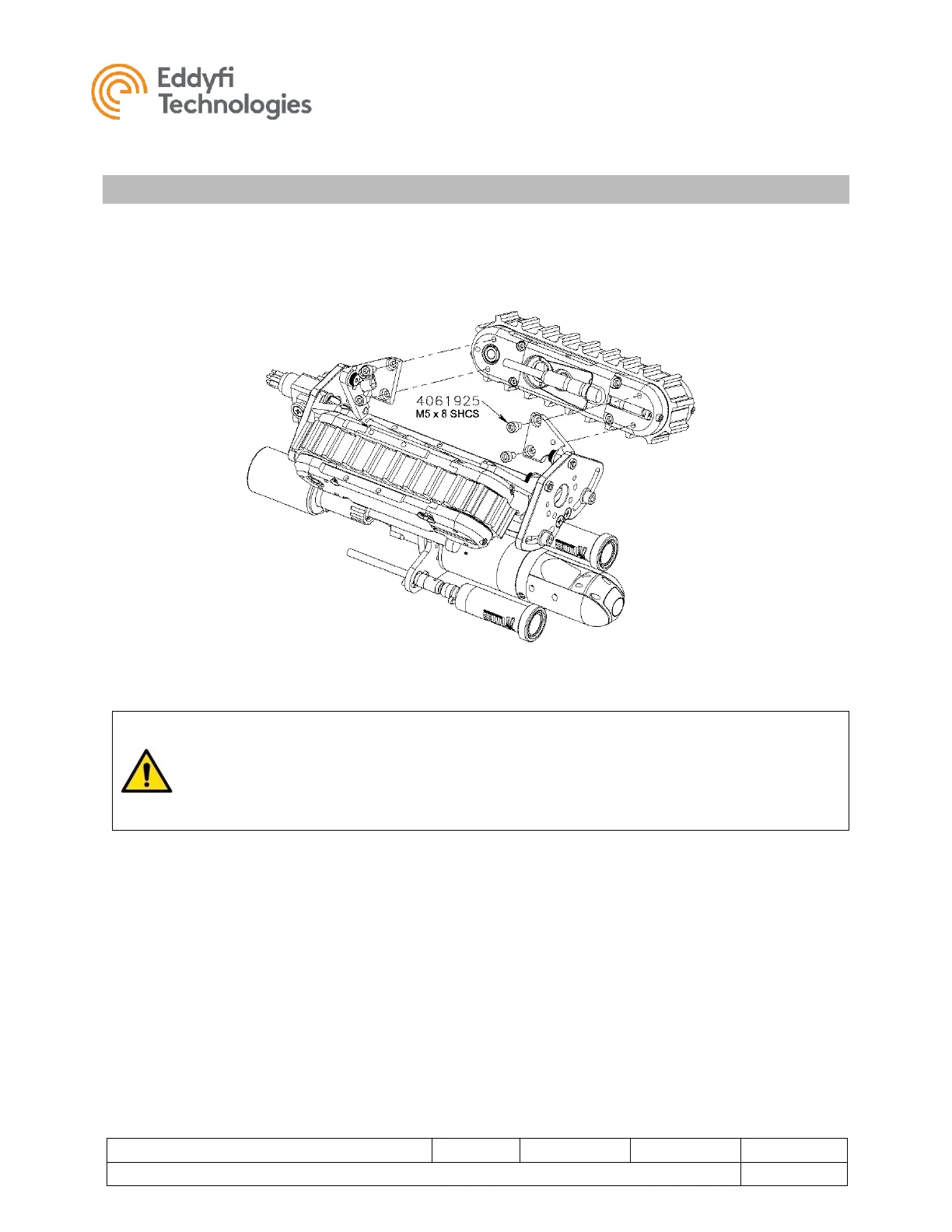

FIGURE 2: PARALLEL TRACK REMOVAL
WARNING: Track Voltage Input – Microtracs are supplied in two different
voltage ranges: 36-48VDC, and 30-70 VDC. Verify your tracks have the correct
voltage input range for your system. 48V rated tracks will be damaged if
connected to a 70-Volt system. Wide input tracks are designated by a \V/ symbol
on the side plate.
