User Manual

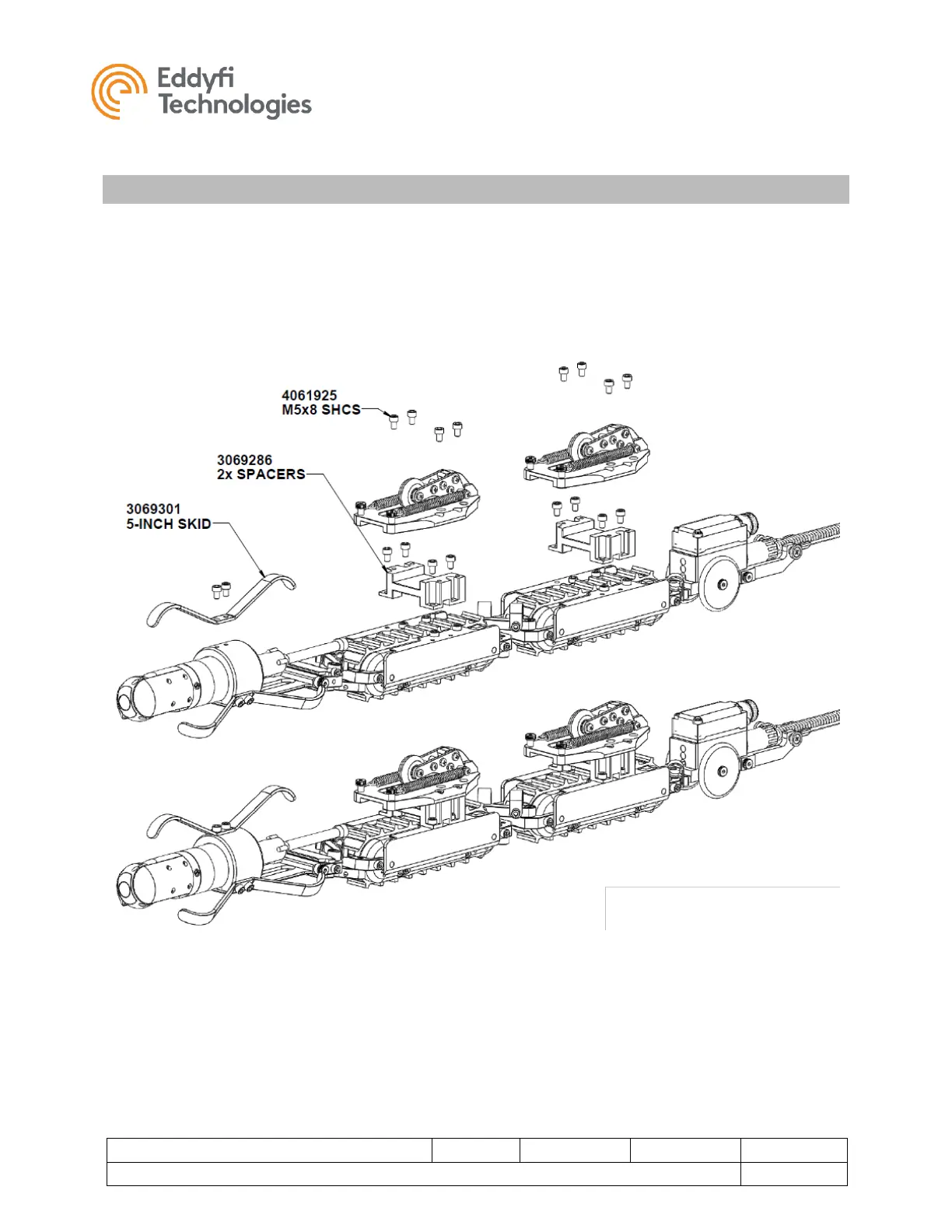

125 mm (5 in) Configuration
1. The 125 mm (5 in) in-line configuration uses the spring-loaded traction units (illustrated above)
with one spacer.
2. Install the 125 mm (5 in) skids around the camera (illustrated below). Use Loctite 243 (blue) with
all fasteners.
