User Manual

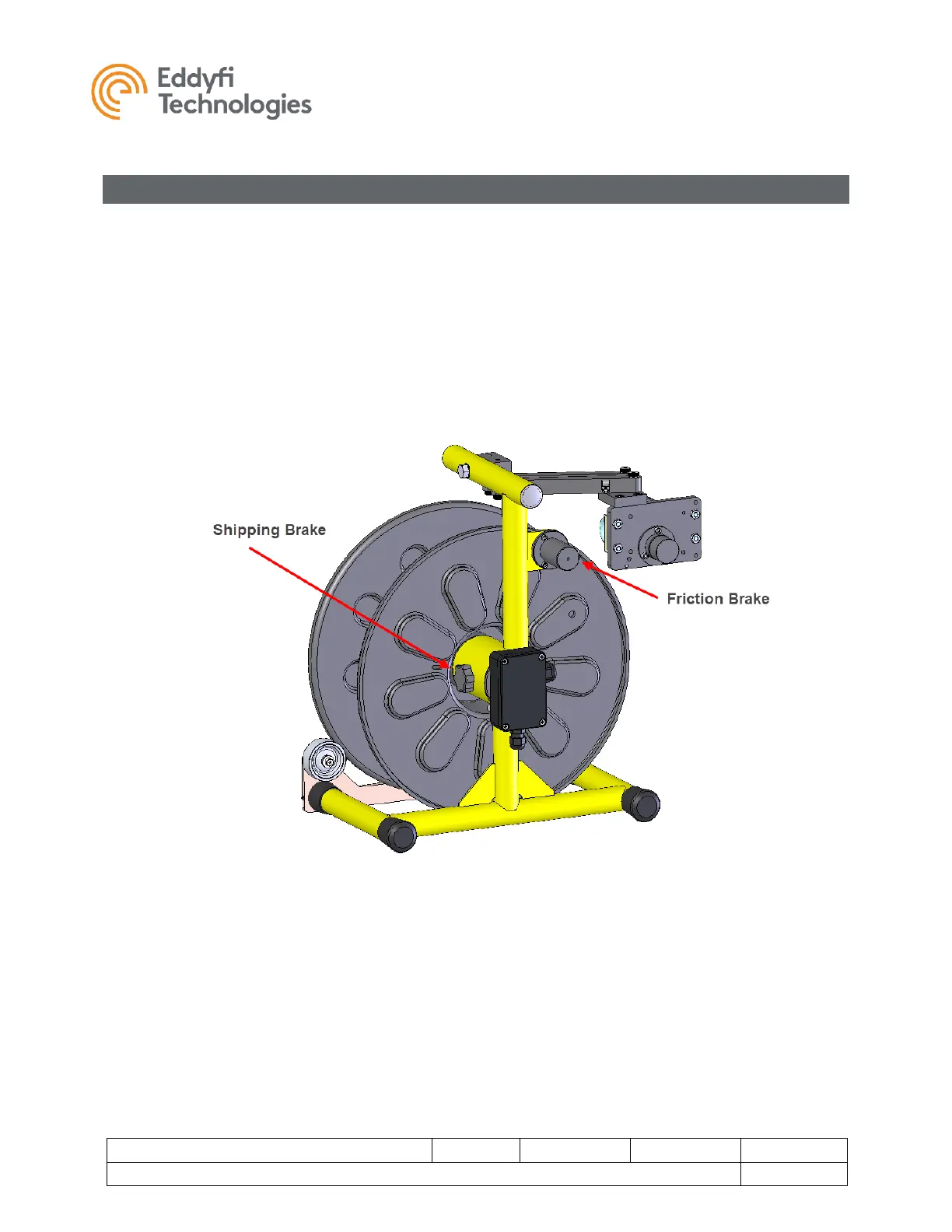

Mini-Reel Setup
If your system includes a Mini-Reel, follow these steps to operate:
1. Remove the Mini-Reel from the shipping case.
2. Connect the deck cable from the reel to the Video Interface and Power Supply.
3. Connect the encoder deck cable from the reel to the Video Interface and Power Supply (if
provided with Mini-Reel).
4. Disengage the shipping brake.
5. Make sure the friction brake is engaged – disengaging the friction brake can result in slack tether
resulting in potentially jamming the reel.
6. Unwind some tether and connect the tether to the vehicle.
