Magnet Kit Installation

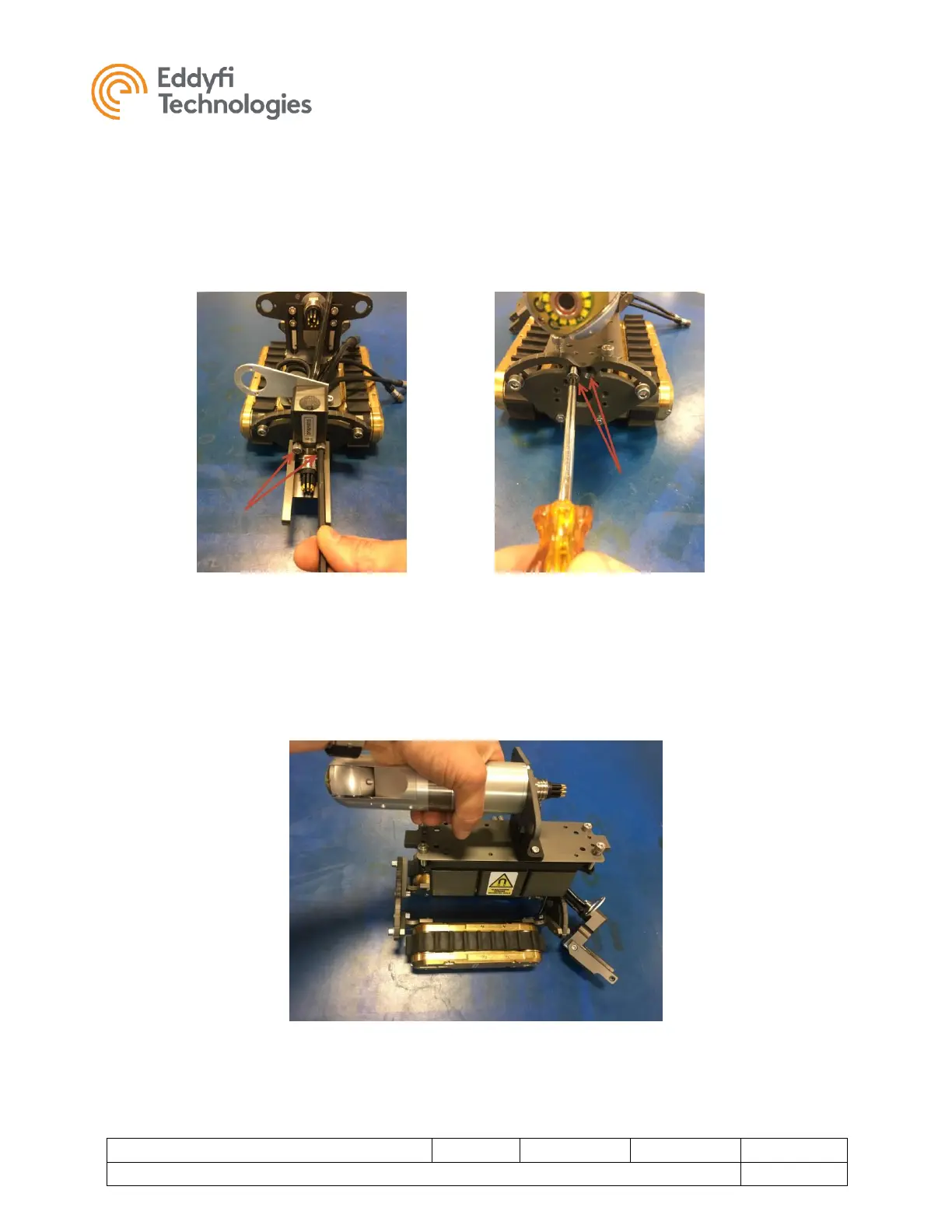

To install the magnet kit, start with the vehicle in the flat configuration with the front camera whip
disconnected, then, remove the harness by unscrewing the two M6 SHCS using a 5mm Allen key. Next,
remove the four M5 FHMS that hold on the center bar by using a No. 1 Philipps screwdriver.
FIGURE 4: REMOVE CENTER BAR SCREWS
Finally, the center bar and camera mount can be lifted out of the chassis and the magnets installed to the
center bar. See Error! Reference source not found. for assembly of the magnet plate and magnet
boxes. Reassembly of the vehicle is the reverse of disassembly.
FIGURE 5: FRAME CENTER BAR REMOVAL
