Chapter 3
| Switch Chassis
Switch Cooling Requirements
– 22 –
Switch Cooling Requirements
Wherever the switch is located, be sure to pay close attention to switch cooling
requirements. The location should be well ventilated and provide unrestricted air
flow at the front, back, and sides of the switch. If the air flow is insufficient, it may
cause the switch to overheat and possibly fail.
The switch includes five removable fan trays located in the rear of the switch. The
fan tray options may have either a front-to-back (F2B) airflow direction or a back-to-
front (B2F) airflow direction. For proper switch cooling, all installed fan trays must
have a matching airflow direction.
The following figure shows the airflow through the switch.

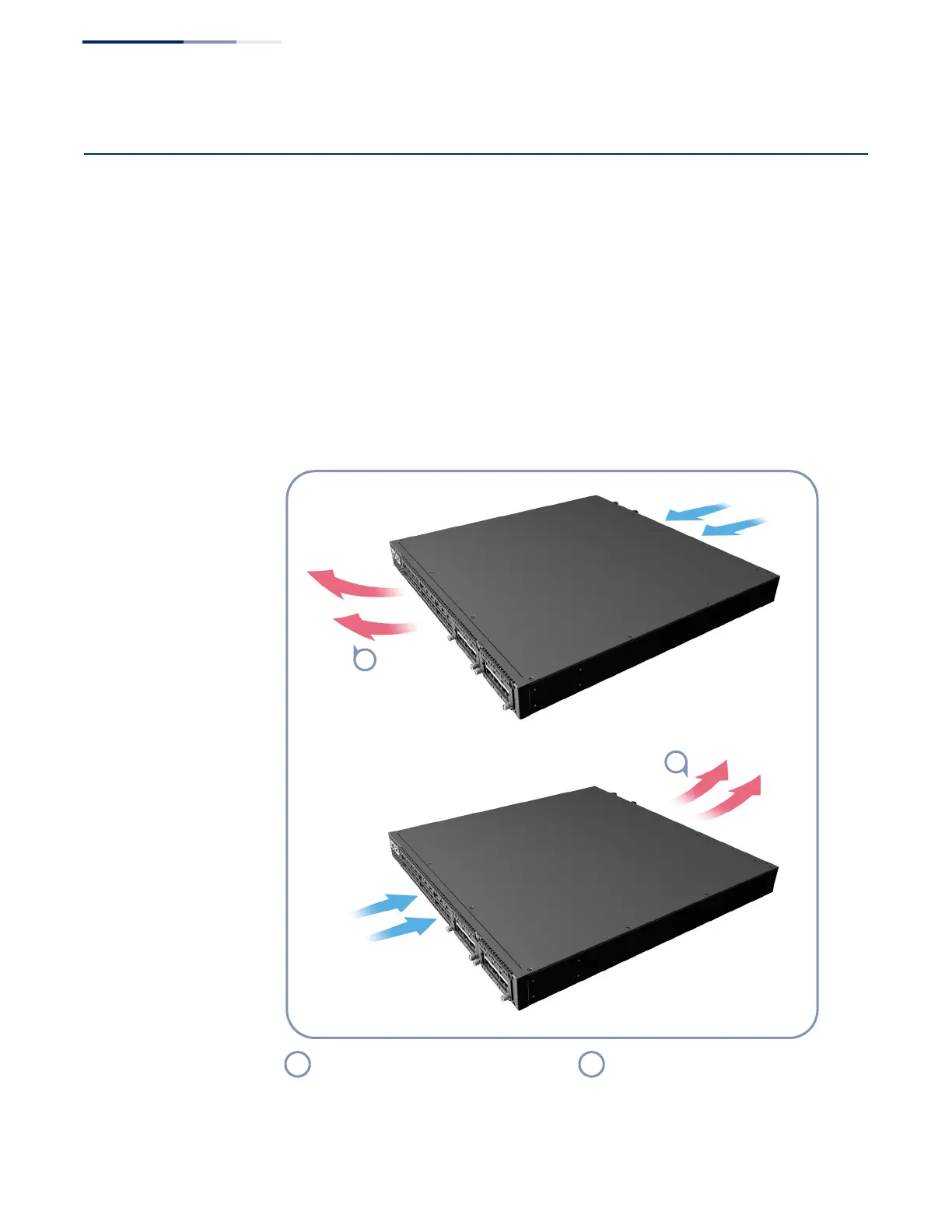

Figure 9: Switch Cooling
B2F Airflow F2B Airflow
