2-4-5 AP Bridge-WDS Mode
In this mode, this wireless range extender/access point will connect to up
to four wireless range extender/access points which uses the same mode,
and all wired Ethernet clients of every wireless range extender/access
points will be connected together. You can use this mode to connect a
network to other networks which is physically isolated.
When you use this mode, this range extender/access point is still able to
accept wireless clients.

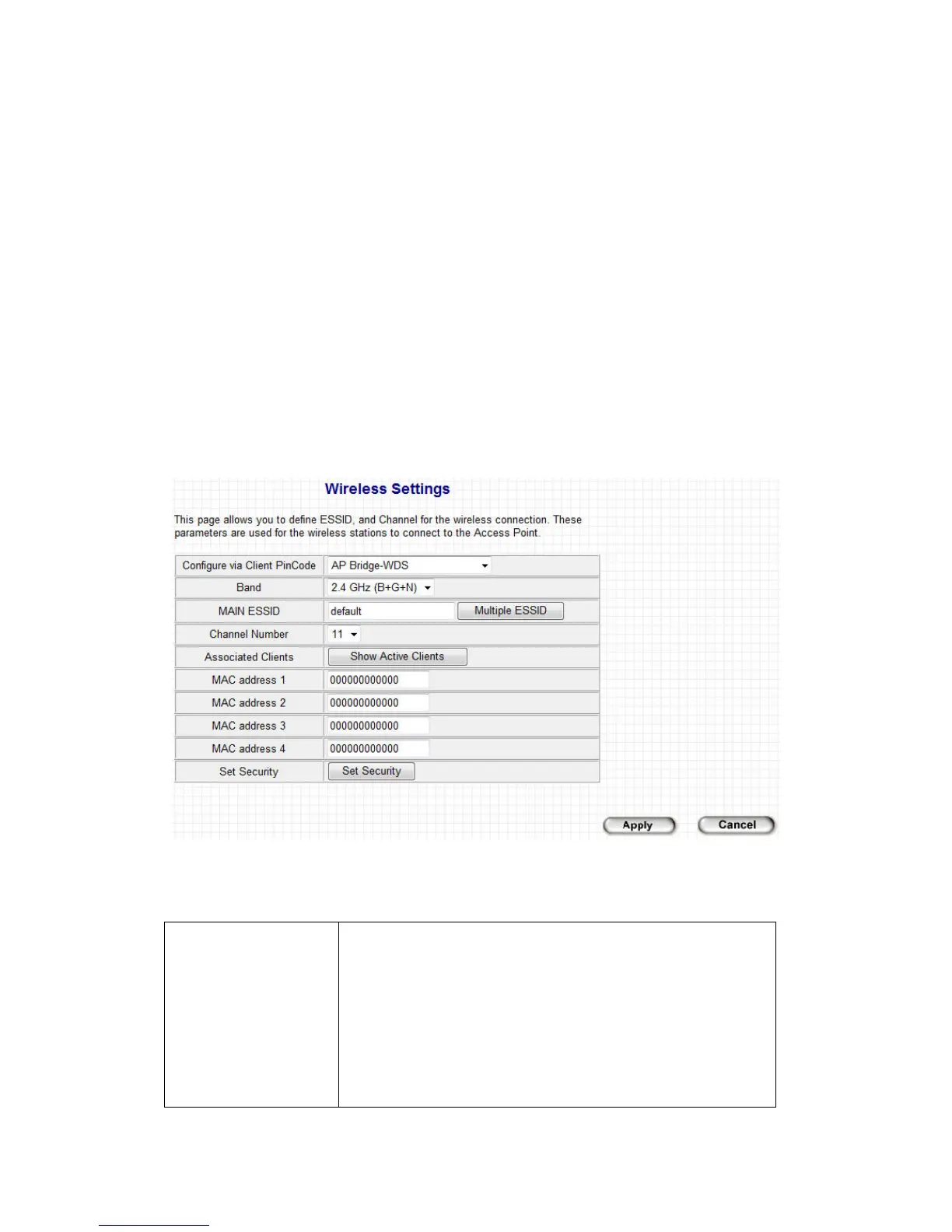

When you select ‘AP Bridge-WDS’, the following options will be
displayed:
Here are descriptions of every setup item:
Band Please select the wireless band you wish to use. By
selecting different band setting, you’ll be able to
allow or deny the wireless client of a certain band.
If you select 2.4GHz (B), 2.4GHz (N), or 2.4GHz
(G), only wireless clients using the wireless band
you select (802.11b, 802.11 Draft-N, or 802.11g)
