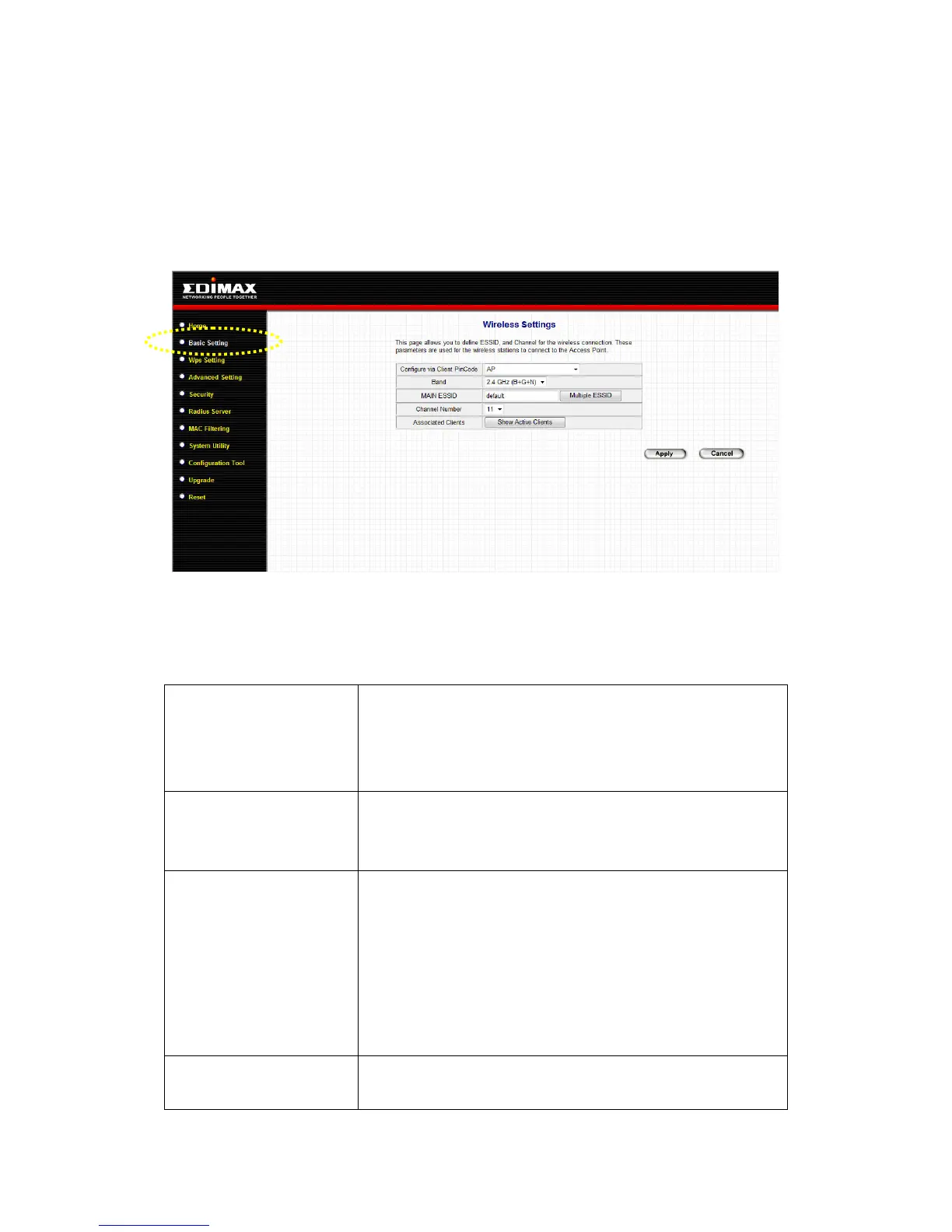

2-4 Select an Operating Mode for Wireless Range extender/access point
This range extender/access point can be operated in different modes; you
can click ‘Basic Setting’ on the left of web management interface to
select an operating mode you want to meet for different needs:
You can click ‘Mode’ dropdown menu to select operating mode, and there
are 6 operating modes available:
AP Range extender/access point mode, allows
wireless clients to connect to range
extender/access point and exchange data with the
devices connected to the wired network.
Station-Infrastructure Enable the Ethernet device such us TV and Game
player connected to the range extender/access
point to a wireless client.
AP Bridge-Point to
Point
Establish wireless connection with another
wireless range extender/access point using the
same mode, and link the wired network which
these two wireless range extender/access points
connected to together. Only one range
extender/access point can be connected in this
mode.
AP Bridge-Point to
Multi-Point
Establish wireless connection with other wireless
range extender/access points using the same
