Edimax EW-7416APn v2 User Manual

62
2-10 System Utilities
This range extender/access point provides some control functions include
password, IP address management, and DHCP server function. Please
click ‘System Utility’ on the left of web management interface to access
these functions. Below are detailed descriptions of every control function.
2-10-1 Change Password
You can change the password used to enter the web configuration menu
of this wireless range extender/access point.

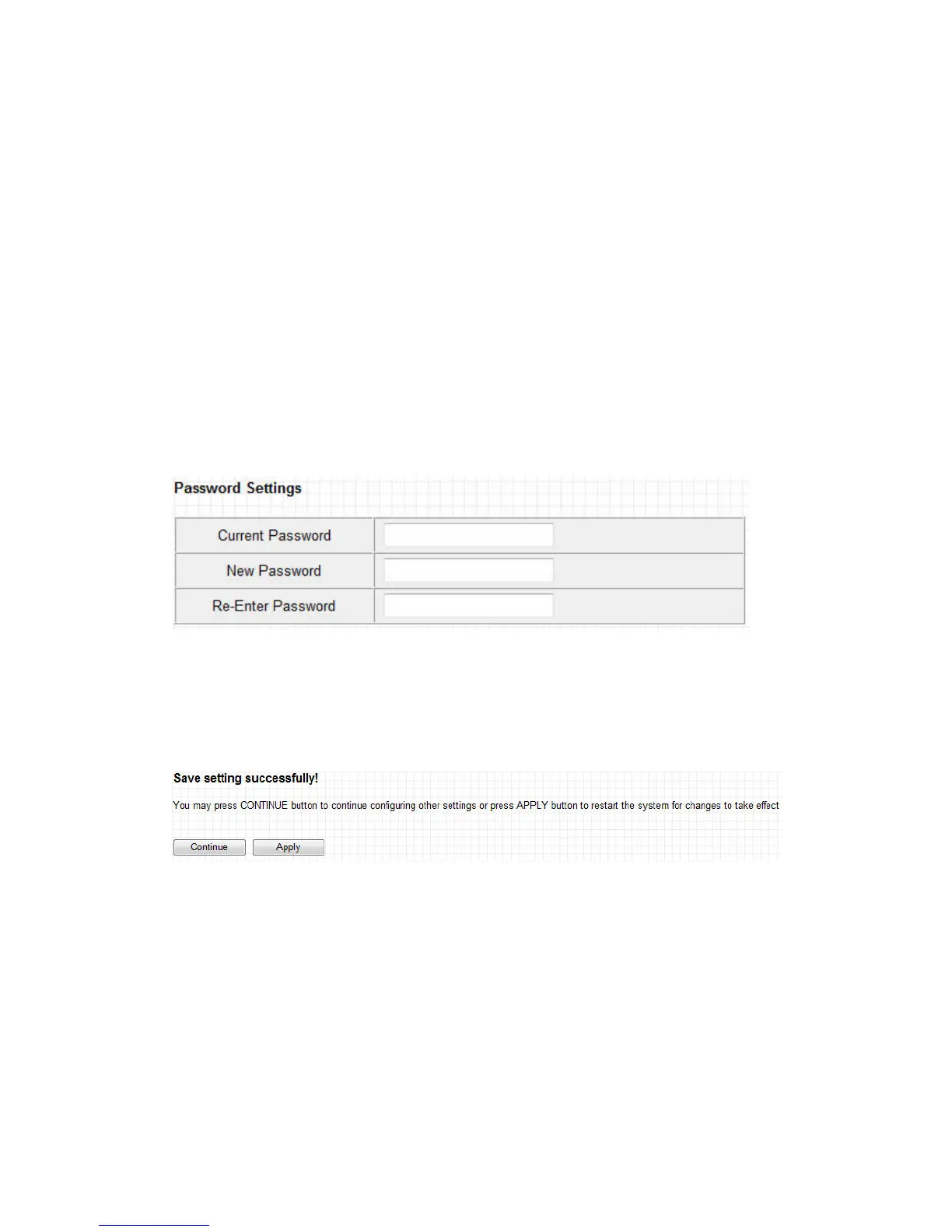

Please click ‘System Utility’ on the left, and the following message will
be displayed:
Please input current password in ‘Current Password’ field, then input new
password in both ‘New Password’ and ‘Re-Enter Password’ field. After
you finish, please go to the bottom of this page and click ‘Apply’, and the
following message will be displayed:
When you see this message, the settings you made is successfully save.
You can click ‘Continue’ button to back to previous page and continue on
other setting items, or click ‘Apply’ button to restart the wireless range
extender/access point and the changes will take effect after about 30
seconds.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
