‘Refresh’ button in popup window to keep
information up-to-date
Root AP SSID In ‘Universal Repeater mode, this device can act
as a station to connect to a Root AP. You should
assign the SSID of the Root AP here or click
‘Select Site Survey’ button to choose a Root AP.
Select Site Survey Click ‘Select Site Survey’ button, then a “Wireless
Site Survey Table” will pop up. It will list all
available range extender/access points near by.
You can select one range extender/access point in
the table and the range extender/access point will
join wireless LAN through this range
extender/access point. Please go to Section 2-4-2-1
for more information about the ‘Wireless Site
Survey Table’.

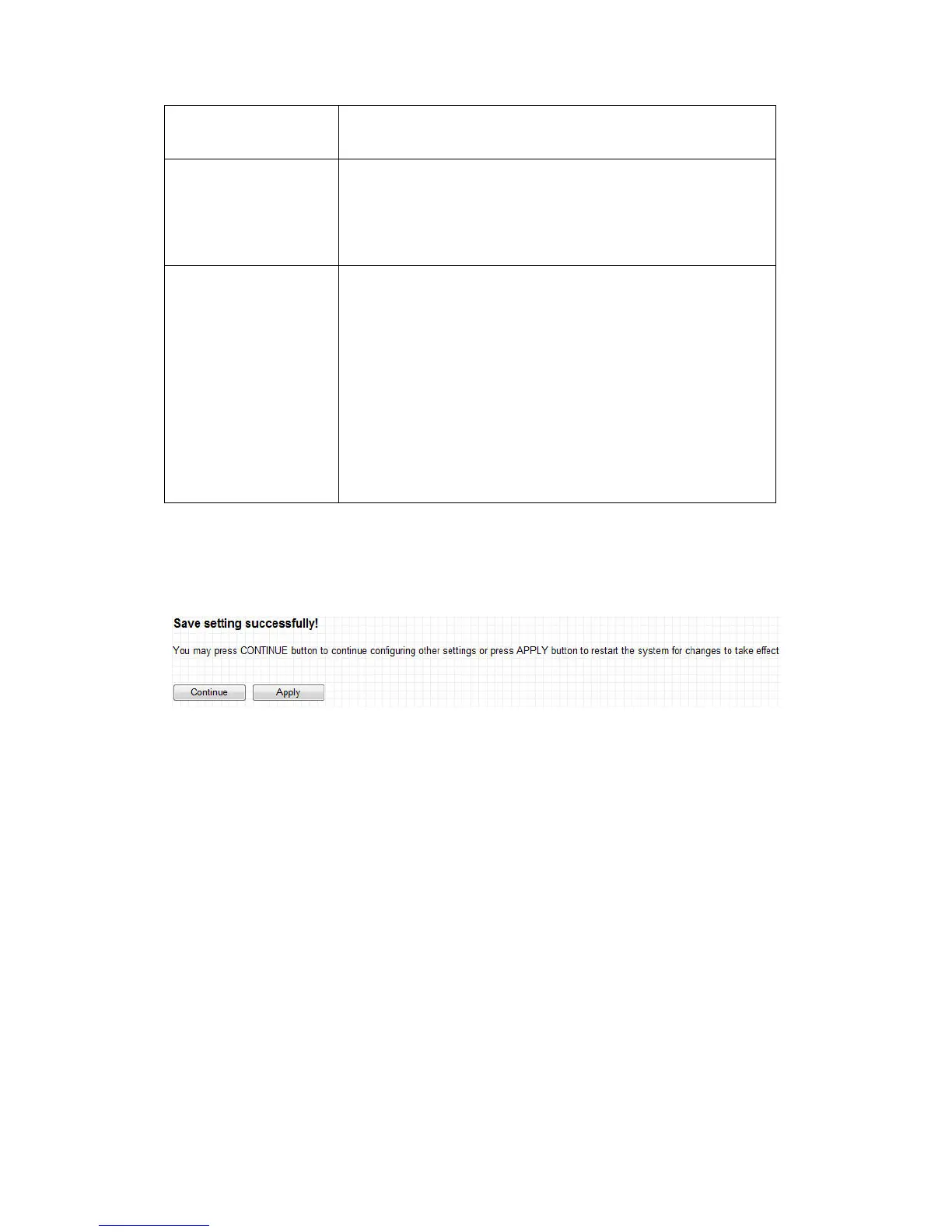

After you finish with setting, please click ‘Apply’, and the following
message will be displayed:
When you see this message, the settings you made is successfully save.
You can click ‘Continue’ button to back to previous page and continue on
other setting items, or click ‘Apply’ button to restart the wireless range
extender/access point and the changes will take effect after about 30
seconds.
