5. Disassembly

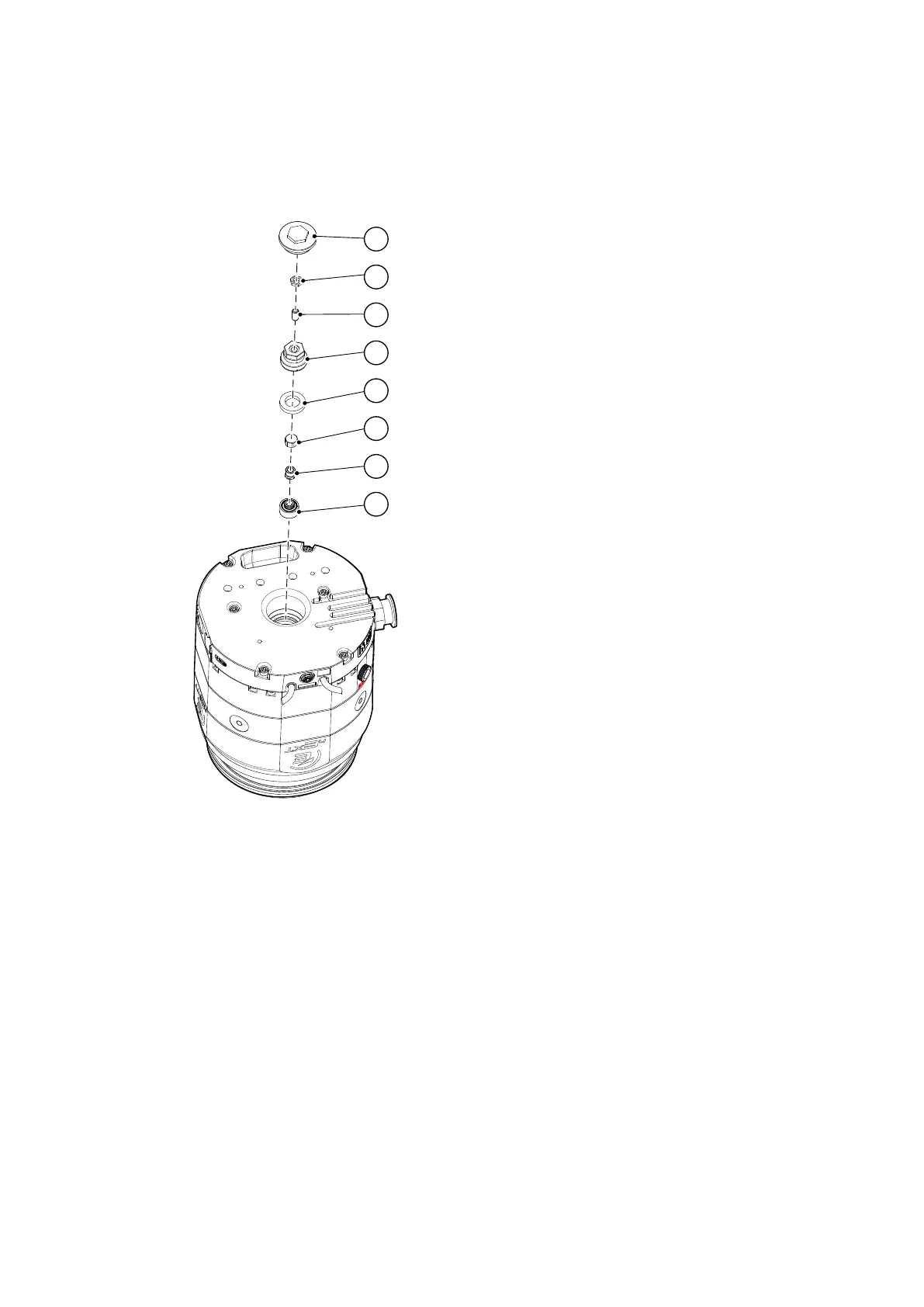

Figure 7 Overview- Bearing in the nEXT pump

CS/5290/A

1. Bearing cover 2. Hexagon nut ISO 8675 - M8x0.5 A4-035

3. Ball pressed screw M8 x 0.5 x 17.2-A2 4. Axial limiter

5. Axial disc 6. Counter nut M12x1

7. Nut M8x1 8. Groove ball bearing 8x23x15 install ready

1. Bearing cover 2. Hexagon nut ISO 8675 - M8x0.5 A4-035

3. Ball pressed screw M8 x 0.5 x 17.2-A2 4. Axial limiter

5. Axial disc 6. Counter nut M12x1

7. Nut M8x1 8. Groove ball bearing 8x23x15 install ready

Page 14300872820_002_C2

B8J203880_C
