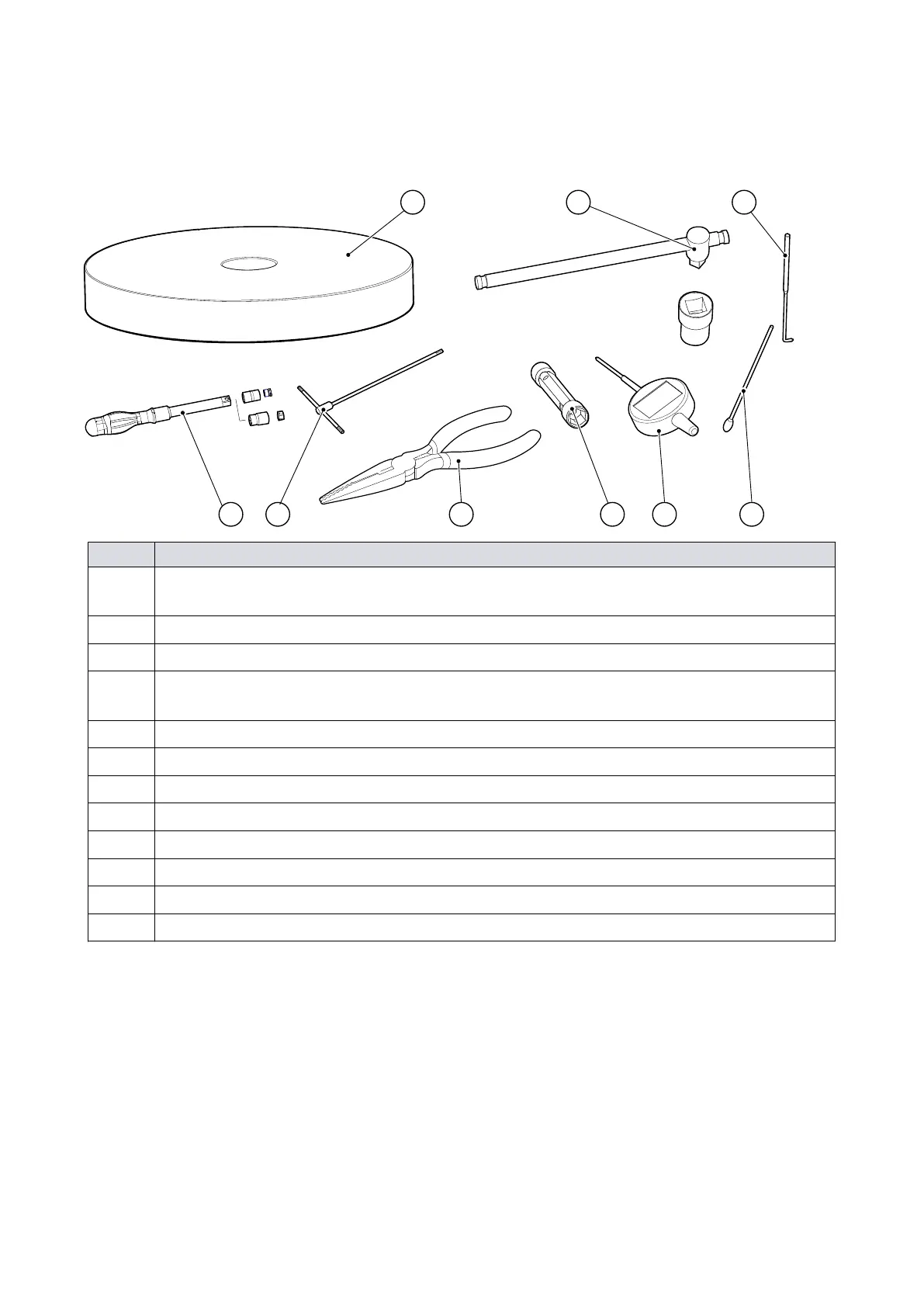

Edwards nEXT 730D - Additional Tools and Items Required; Figure 2 Additional Tools

3.2 Addional tools and it
ems required
Figure 2 Addional tools
BC-0051-A
2
1
4
3
5
8
7
9
6
No. Addional tools
1 Foam plasc pad Ø approx. 400 mm, approx. 80 mm thick, with a hole in the center Ø ap-
prox. 50 mm
2 22 mm hex socket wrench
3 Hook tool with 90° end
4 Torque screwdriver with 12 mm and 14 mm hex socket (1/4" square), torque range 2 to 6
Nm
5 4 mm T-bar
6 Long nose pliers, 200 mm
7 13 mm hex socket wrench ISO 2236
8 Dial gauge with 50 mm extension
9 Polyester clean swab sck
N/A Scissors
N/A Lint-free cloth
N/A Latex gloves
