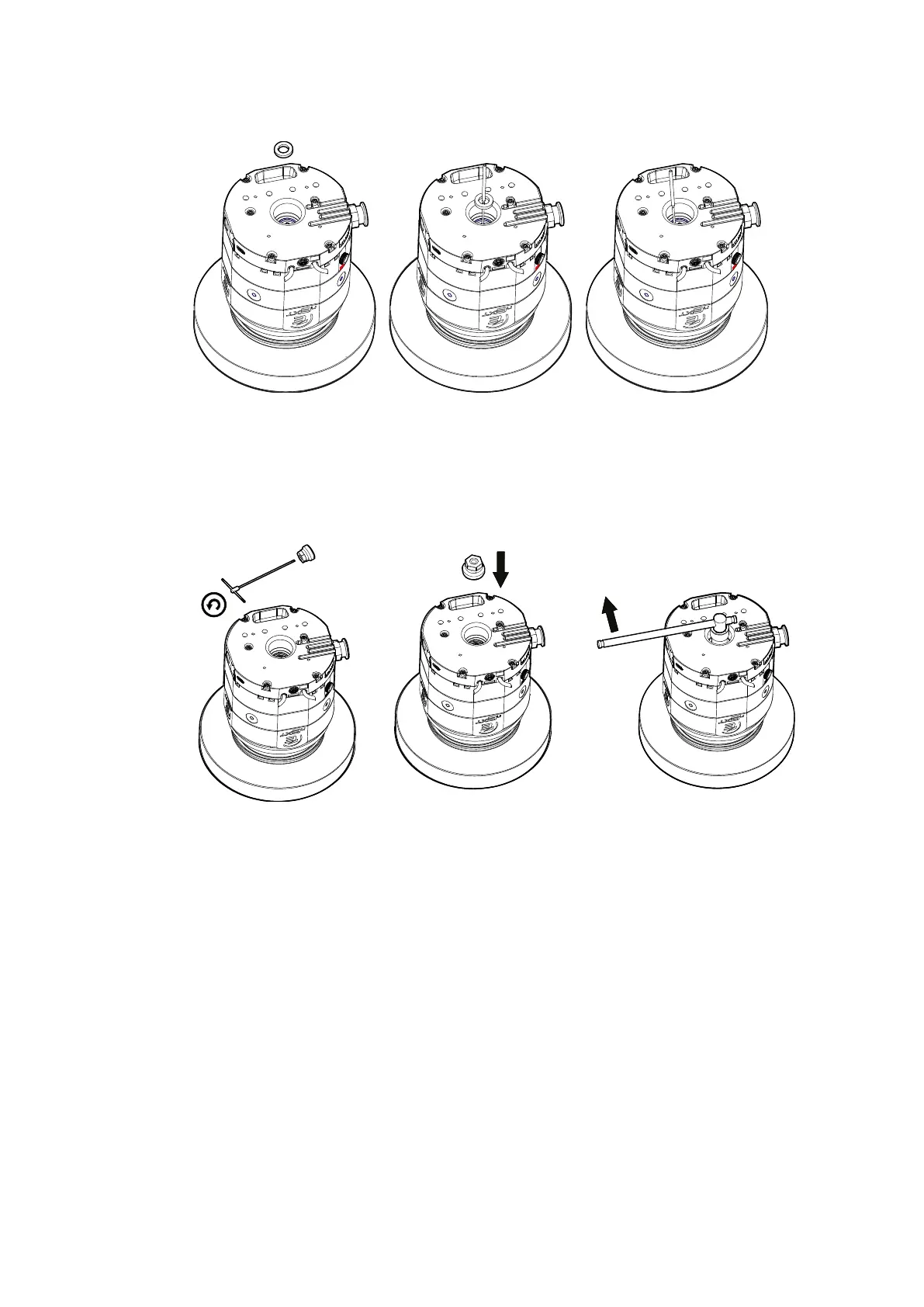

Figure 19 Assemble the axial disc

CS/5281/A

1. Assemble the axial disc with the new grease (grease showing to the bearing). We

rec

ommend that you move the hook tool through the axial disc and touch the

counter nut while inserng the axial disc.

2. Check the posion with the hook.

Figure 20 Screw in the axial limiter

CS/5297/A

≈ 30 Nm

1. Use the T-bar to turn the headless screw of the axial limiter by a half turn counter-

clockwise.

2. Insert the axial limiter and install the 22 mm hex socket on the inserted axial

limiter

3. Use the wrench to fasten the axial limiter.

Page 22300872820_002_C2

B8J203880_C

300872820_002_C2 - Assembly
