Edwards nEXT 730D - Figure 8 Disassembly 1 (Bearing Lid); Figure 9: Disassembly 2 (Axial Limiter) as Figure 6

To Next Page

To Previous Page

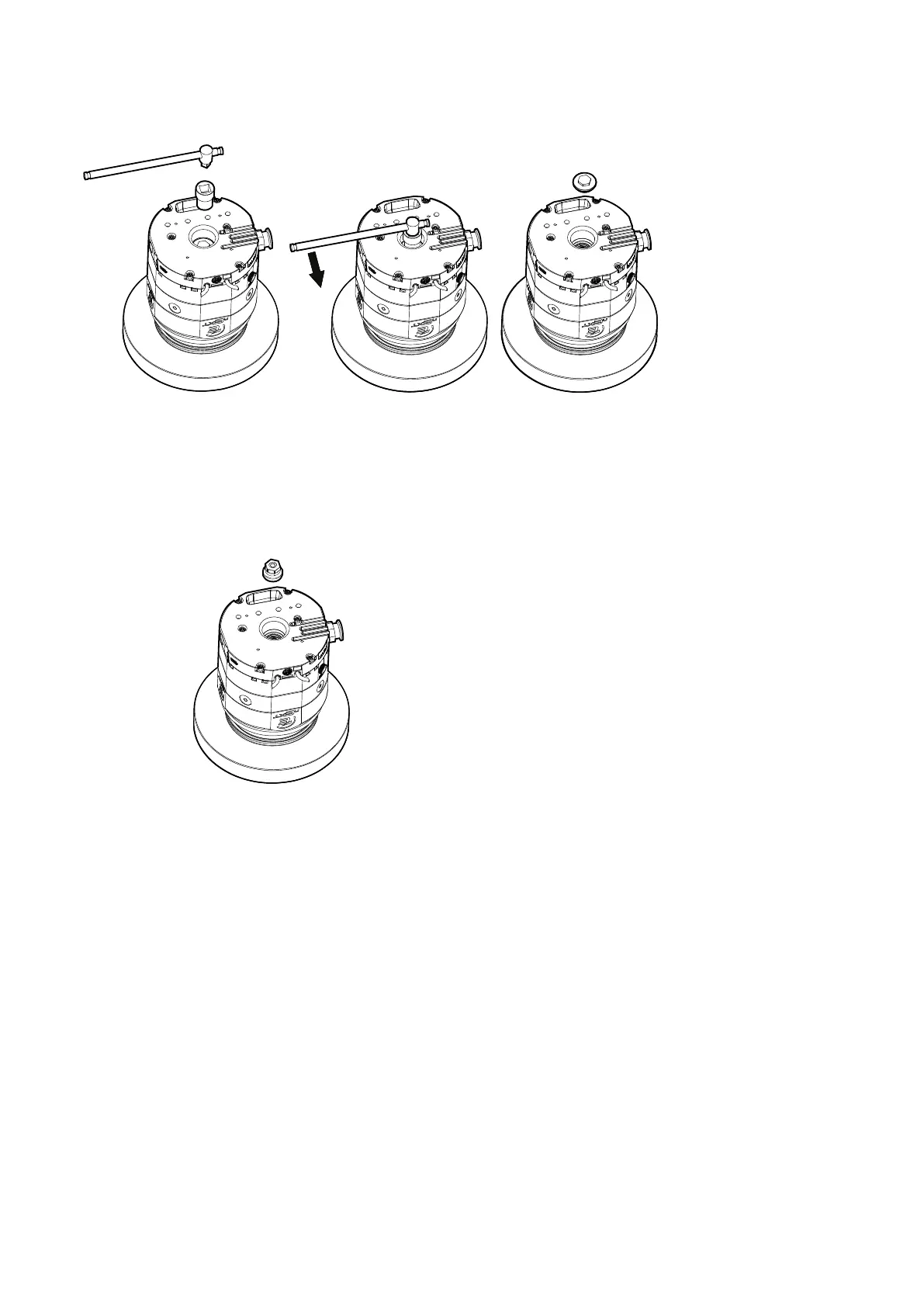

Figure 8 Disassembly 1 (bearing lid)

CS/5284/A

1. Put the pump upside down on the foam plasc pad.

2. Use the 22 mm hex socket wrench to unfasten the bearing lid.

3. Open the pump by removing the bearing lid.

4. Use the 22 mm hex socket wrench to unfasten the axial limiter and remove it.

Figure 9 Disassembly 2 (axial limiter) as gure 6

CS/5285/A

Page 15300872820_002_C2

B8J203880_C

300872820_002_C2 - Disassembly
