5. Installation and connection of the UPS
All limit values listed in the technical data regarding the ambient and operation
conditions are to be maintained in order to ensure the proper functioning of the
UPS.
The device must be installed in a well-ventilated environment, far from liquids,
inflammable gases and corrosive agents.
In general, the following rules apply for the installation of the UPS:
– The device is designed as a tabletop/standing device;
– The installation of the device should only occur on a solid, stable sur-
face (table, shelf);
– Observe the prescribed vertical standing installation position (see
Fig. 5-1);
– The UPS must only be installed in a clean, dust-free and dry location;
– Additionally, an air exchange in accordance with EN62040-1, Annex
M for devices with accumulators must be maintained.

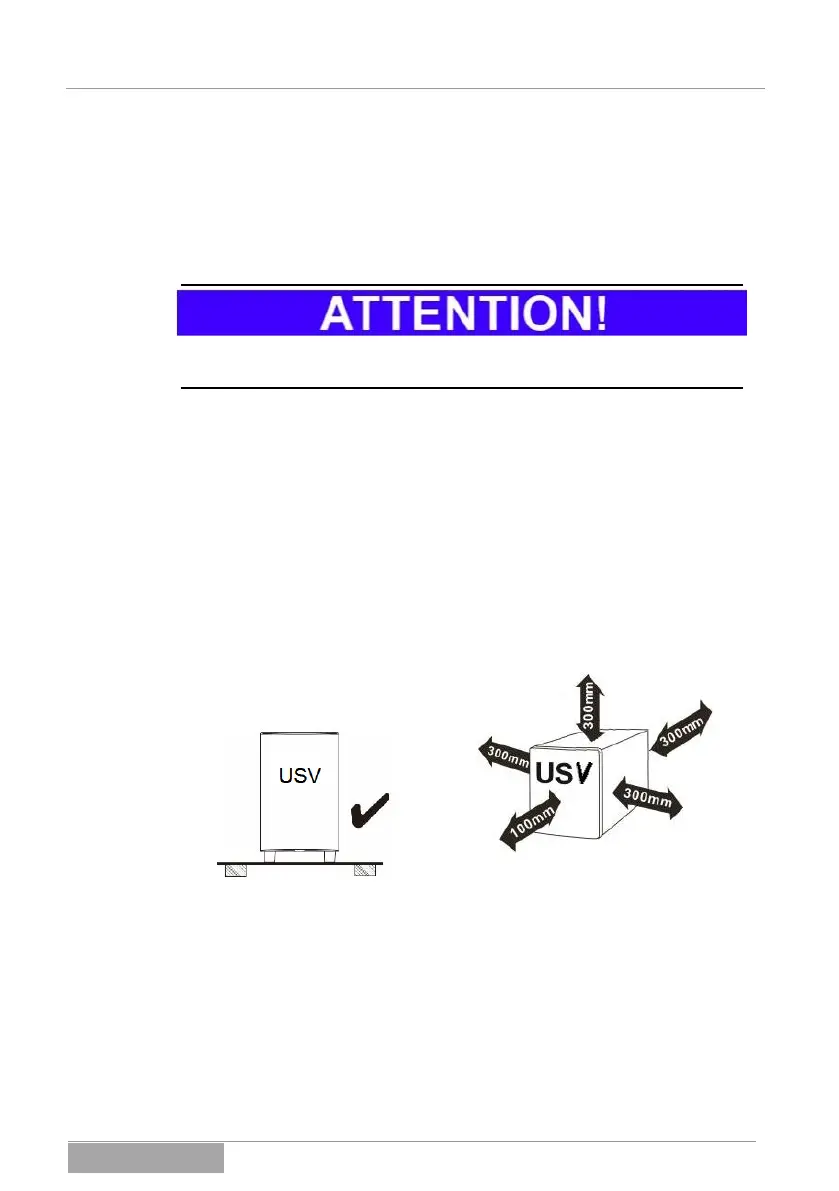

Fig. 5-1 The complete MTX series is suitable for installation as a tabletop or
standing device (TOWER).
Also mind that the ventilation ducts of the UPS are not obstructed and that there
is sufficient clearance to devices, furniture or walls to ensure the cooling of the
device. The clearances regarding other devices illustrated above shall be main-
tained for the MTX series. If there is forced or compulsive ventilation, the clear-
ances can be somewhat reduced.
