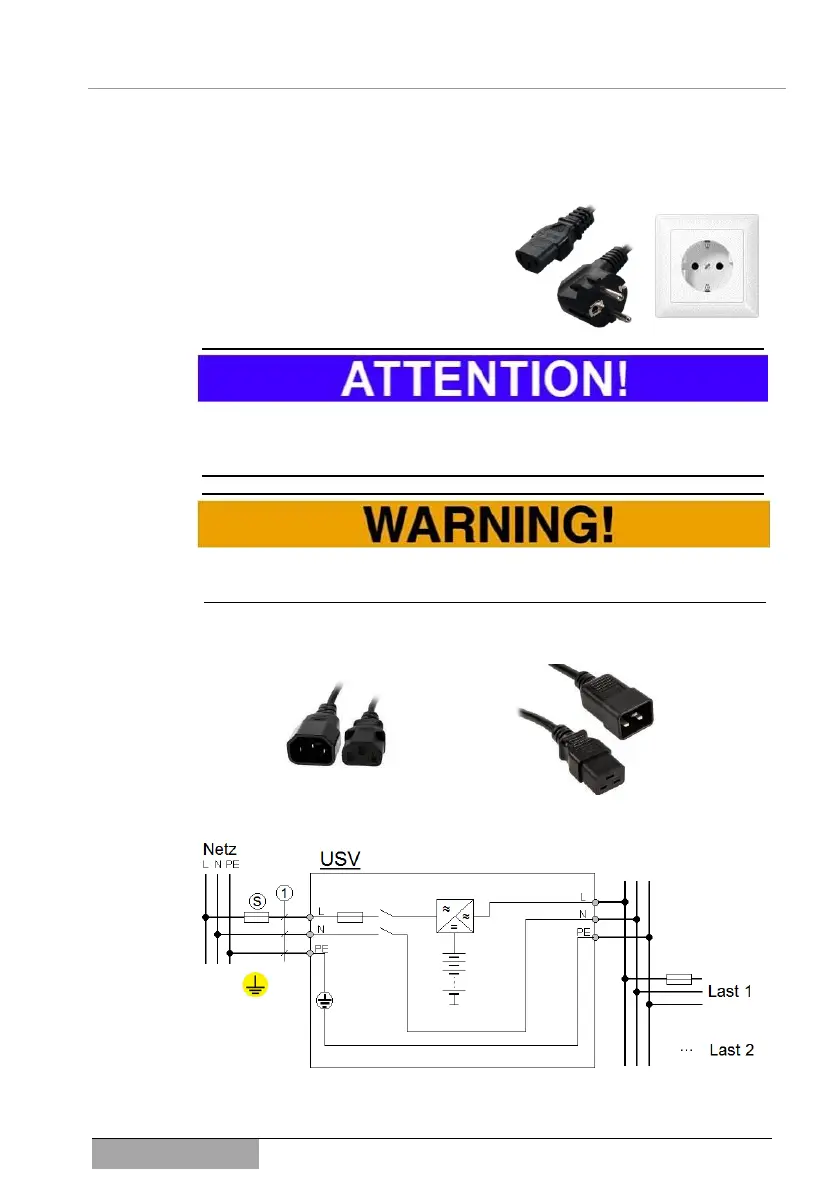

5.1 Connecting the UPS device
5.1.1 Input and output connection for the
UPS
The MTX series is usually connected to
the supply network with the cold device
cable provided on the input side. This can
connect the UPS with the customary wall
socket (Schuko).
If the UPS has been connected to the mains power supply, it automatically
starts up in the STANDBY or charging mode. The relevant display follows. The
fan starts momentarily; the UPS output is not active.
In any case, ensure that the wall socket is properly secured and the PE conduc-
tor is present.
In the next step, the load(s) can be reconnected to the UPS with the cold device
cable provided (C13/C14 or C19/C20).
If a fixed connection for the USP should follow, please note the following con-
nection scheme and the connection data of the table.
Fig. 5-2 Fixed connection scheme of the UPS to the network and the loads.
