DRAWING NAME

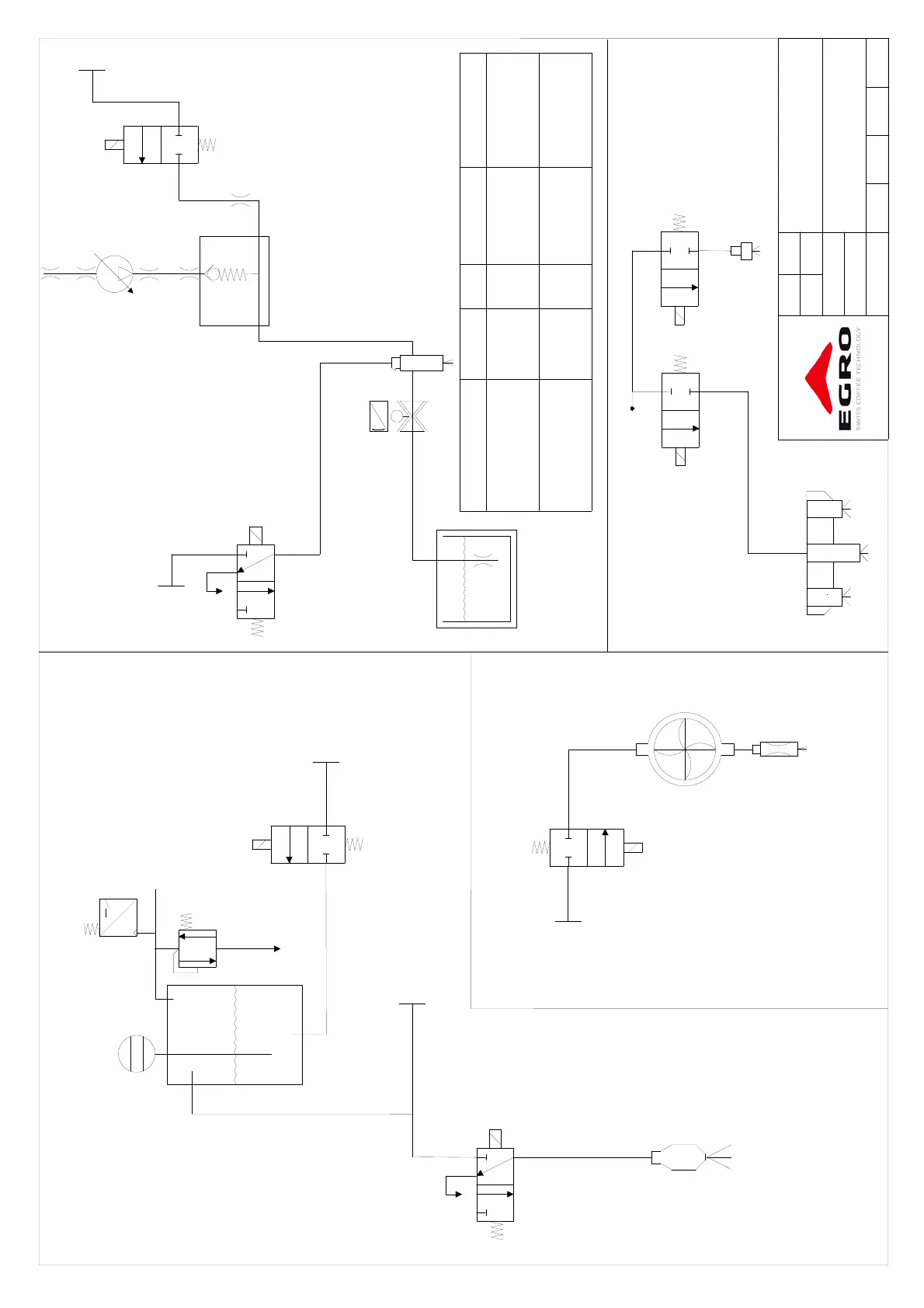

Hydraulic diagram
DWG STATUS
EMESSO
DWG NUMBER
PROJECT
Si_108_pag2
ZERO
DRAFTER CHECKER
CTI DATE
16/12/14
U.T.U.T.
Foamer head
Powder outlet
Ø 5
Steam wand
Hot water outlet
Y4
steam milk
valve
PTFE Ø4/2 155
FEP Ø6/4
Ø6/4
Copper
steam boiler
filling valve
steam valve
steam boiler
boiler-pressure 1.8bar
over-pressure
valve
3bar
pressure sensor
level sensor
Y3
Y7
B3
S13
C
E
Ø1.5
Cool Box
see table
air pump
check valve
pinch valve
Y5
M6
quick milk
rinsing valve
Y13A
T-Connector and
check valve integrated
in one part
Ø 0.6
Ø 0.3
E
B
Ø4/2.5
Ø6/4
Copper
mixer
powder
valve
Y30
M32
D
Steam boiler option Quik milk option
Powder option
Mounting Position Y15 Code Y15 Pipe Connect Milk to Connect Water/Air to
Lateral Left 00055455 sil
1000
7/4
Injector Left Injector Right
Central spout 34040123 sil
1000
6/4
Injector Right Injector Left
Sil
Ø7/3
800
FEP
Ø4/2.5
250
Sil
Ø7/3
70
FEP
Ø4/2.5
900
Sil
Ø7/3
50
Bypass option
FEP Ø4/2.5
bypass
valve
Y20
F
coffee outlet
hot water outlet
coffee outlet
hot water
valve
Y6
FEP Ø4/2.5
Ø 0.3
Ø 0.3
Ø 0.3
