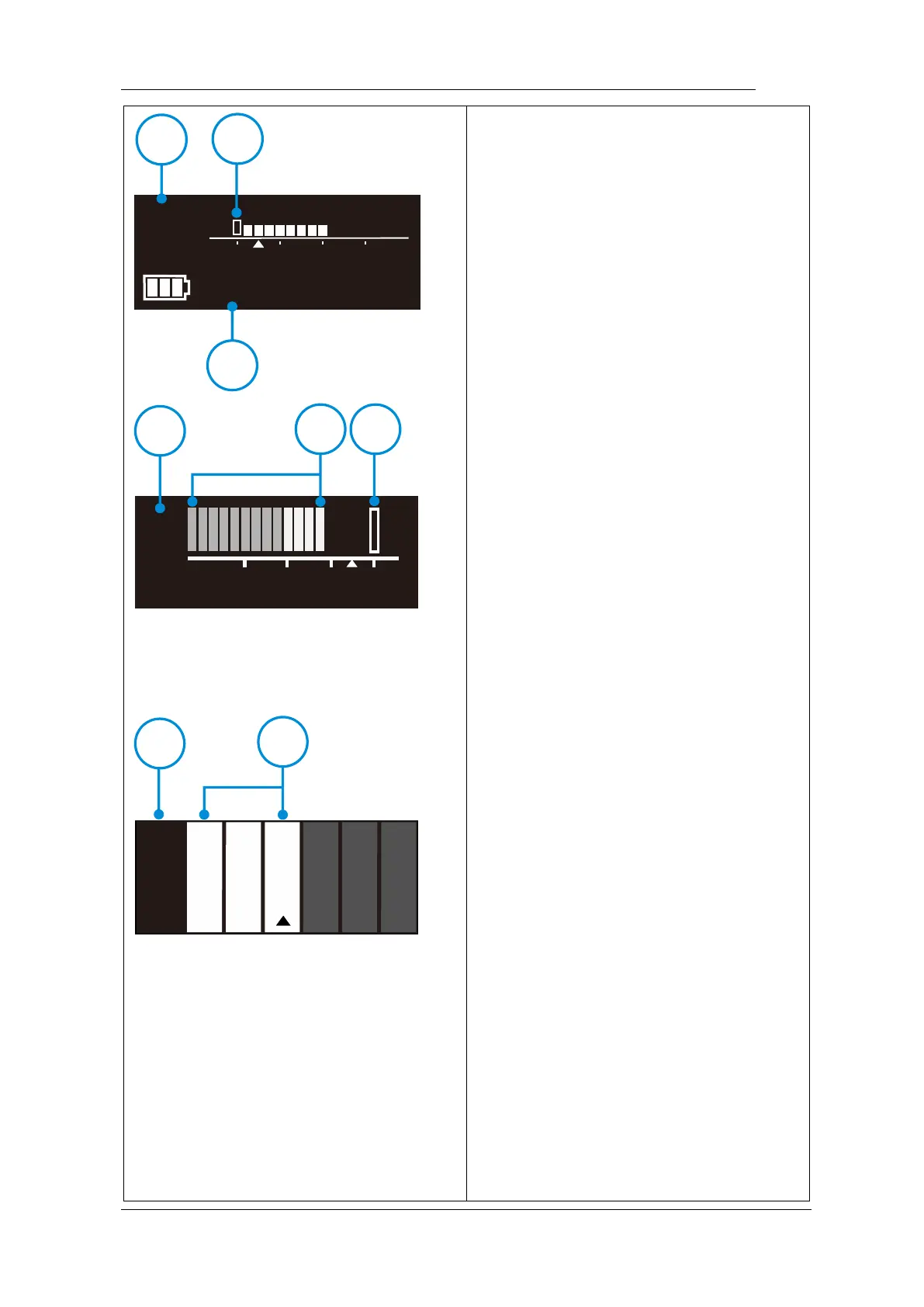

Canal measurement standby
interface
① Memory mode number
M0 is apex stand-alone memory
② Electronic apex locator
③ Apex flash bar
Canal measurement start interface
① Indication number
The number has no represent of
actual length, only for indication
② Canal length indicator bar
③ Apex flash bar (apex stand-
alone mode) or reference point
flash bar (motor combine with apex
mode)
Canal measurement approach apex
interface
① The estimate dimension from
apex (Major/Anatomic apical
foramen)
② Canal length indicator bar
