Chapter 4 Advanced Adjustment / Setting
●

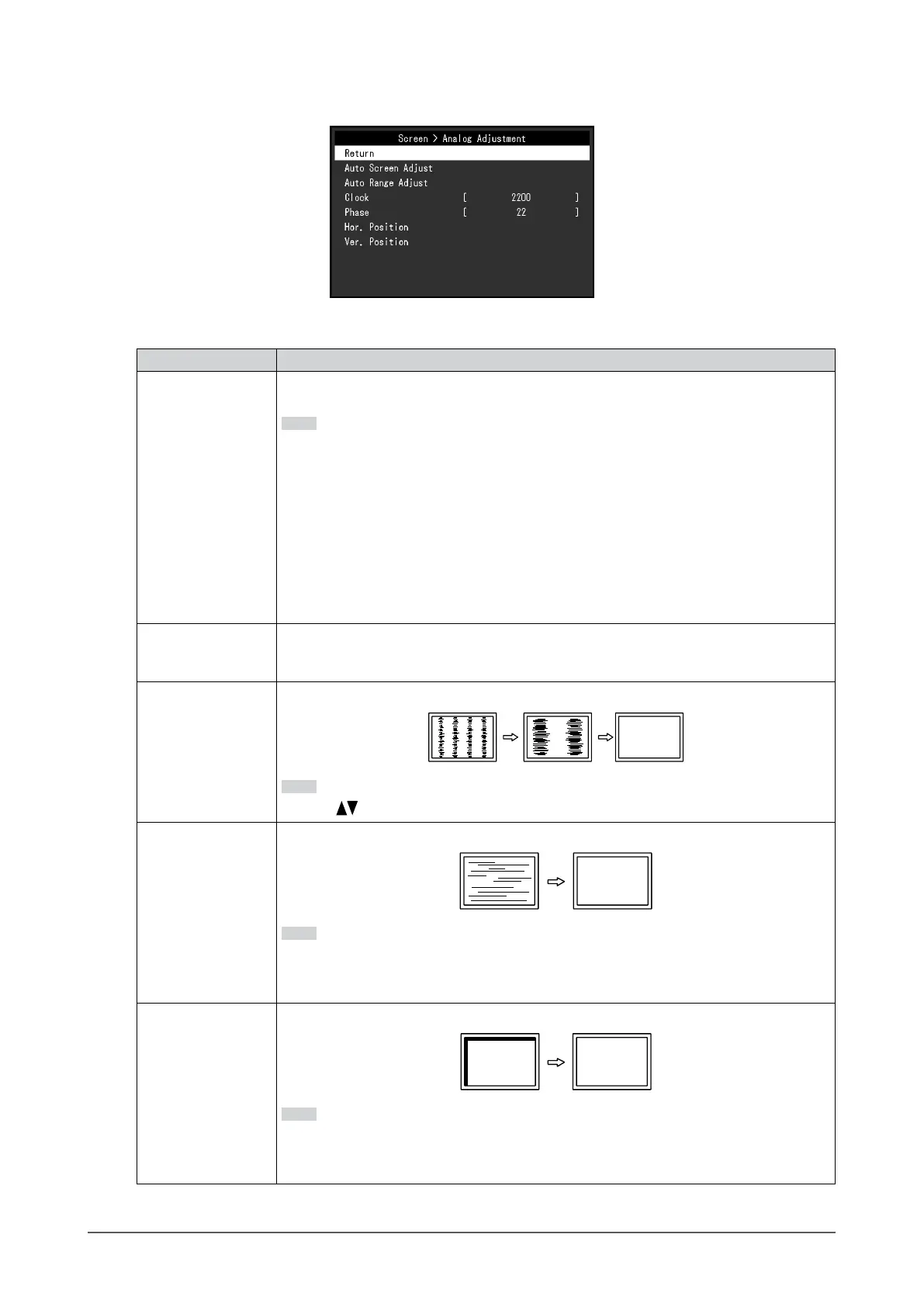

Analog Adjustment
Screen ickering, display position, and size can be adjusted when the D-Sub signal is input.
Function Description
Auto Screen Adjust Screen ickering, display position, and size can be adjusted automatically. Selecting
“Auto Screen Adjust” displays a message. Select “Yes” to enable this function.
Note
• The automatic screen adjustment function works correctly when an image is fully
displayed over the entire displayable area of the screen. They do not work properly
in the below cases:
- When an image is displayed only on a part of the screen (command prompt
window, for example)
- When a black background (wallpaper, etc.) is in use
Also, these functions cannot work properly in some graphic boards.
• When a signal is input into the monitor for the rst time or when a resolution or
vertical / horizontal scan frequency not used before is set, the screen is adjusted
automatically (only for signals with a resolution of 800 × 600 or higher).
Auto Range Adjust Every color gradation (0 to 255) can be displayed by automatically adjusting the signal
output level. Selecting “Auto Range Adjust” displays a message. Select “Yes” to enable
this function.
Clock
Flickering of vertical lines on the screen or part of the screen can be reduced.
Note
• Use to make ne adjustments so as not to miss any adjustment points.
Phase
Flickering and blurring over the entire screen can be reduced.
Note
• Flickering or blurring may not be eliminated depending on your PC or graphics
board.
• After setting, adjust the “Clock” again if vertical bars appear.
Hor. Position
Ver. Position
The display position (horizontal and vertical) of the screen can be adjusted.
Note
• Since the number of pixels and the pixel positions are xed on the LCD monitor,
only one position is provided to display images correctly. The position adjustment is
made to shift an image to the correct position.
