Chapter 6 Reference
Chapter 6 Reference
6-1. Attaching the Optional Arm
An optional arm (or an optional stand) can be attached by removing the stand section.
Attention
• When attaching an arm or stand, follow the instructions of their User’s Manual.
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor and arm or stand are heavy. Dropping them may result in injury or equipment damage.
Installation Requirements
When using another manufacturer’s arm or stand, conrm the following in advance and select one
conforming to the VESA standard.
- Clearance between the screw holes: 100 mm × 100 mm
- Thickness of plate: 2.6 mm
- Strong enough to support weight of the monitor unit (except the stand) and attachments such as
cables.
When using another manufacturer’s arm or stand, use the screws as described below.
- Screws xing the stand to the monitor

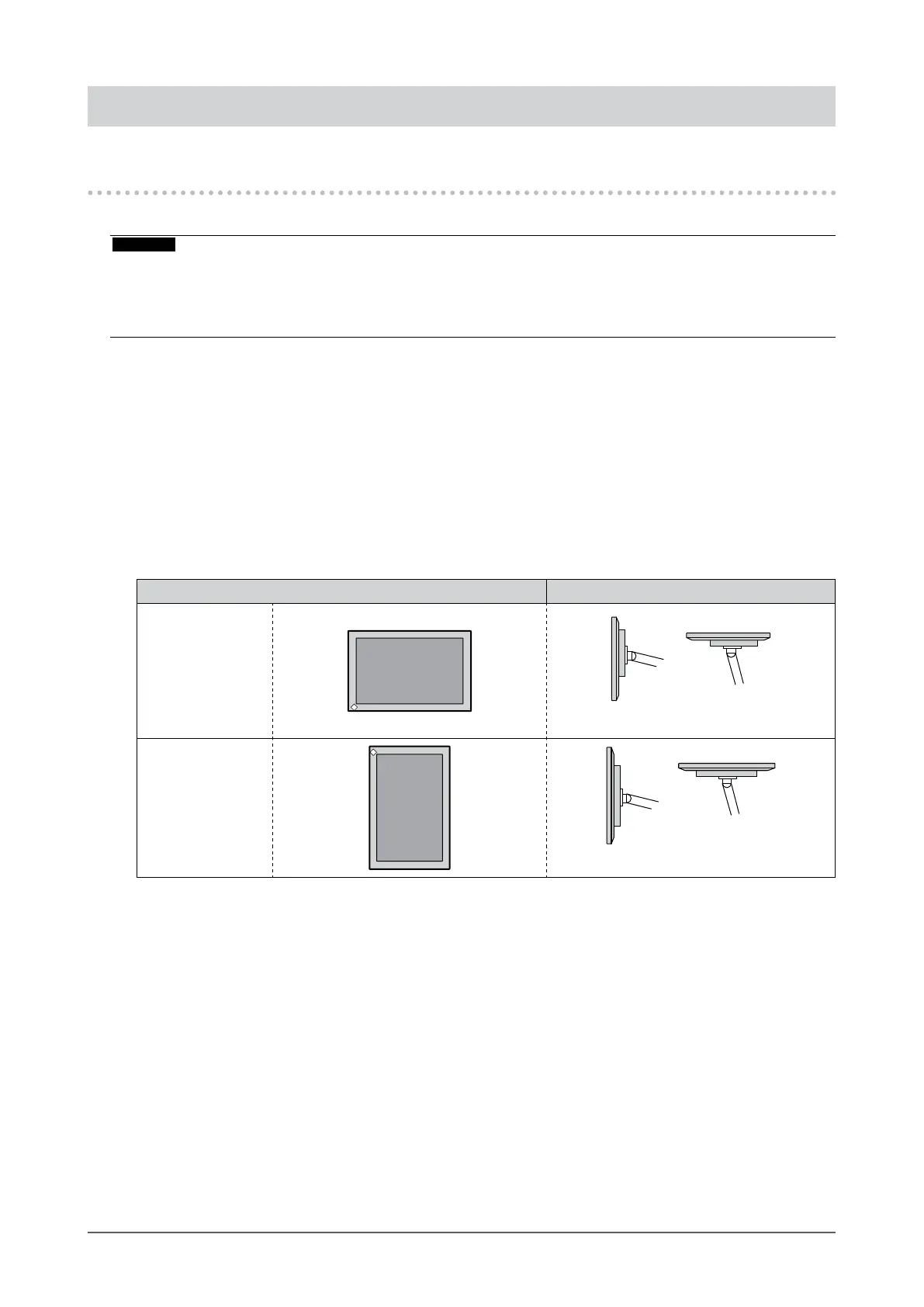

When attaching an arm or stand, installation conditions are as follows:
Orientation Display direction
Landscape
0° (front) to 90° (upward)
Portrait
0° (front) to 90° (upward)
Procedure
1.
Lay the LCD monitor on a soft cloth spread over a stable surface with the
panel surface facing down.
2.
Remove the stand.
Using a screwdriver, loosen the screws securing the unit and the stand.
To Next Page
