DK50-10
01/2022 - 29 - NP-DK50-10-16_01-2022-MD

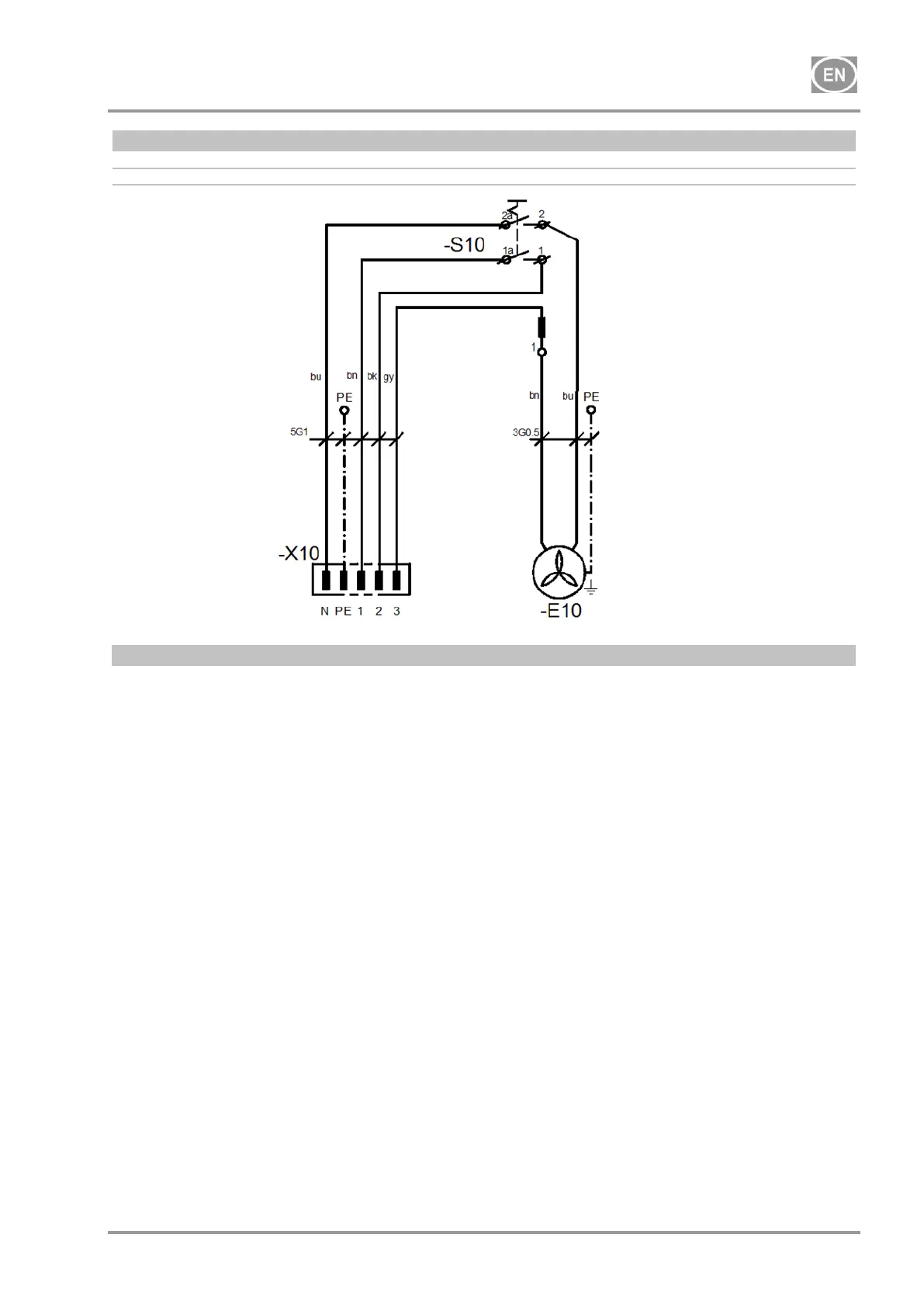

Cabinet for DK50-10S/M
8 – 10 bar
1/N/PE 230 V, 50/60 Hz
ELECTRIC OBJECT OF 1st. CAT
Legend for electrical diagram
M1 Compressor motor
E1 Compressor fan
E2 Dryer fan
M3 Relief valve
B2 Temperature switch
E3,E10 Cabinet fan
X10, X2 Connector
C1 Capacitor
B1 Pressure switch
X1 Terminal box
F1 Breaker switch
M4 Condensate drain valve
P1 Hour counter
S10 Switch
