EKOM DK50 D - Pneumatic Diagram

ELECTRIC AND PNEUMATIC DIAGRAMS
24 NP-eVENT-16_10-2018

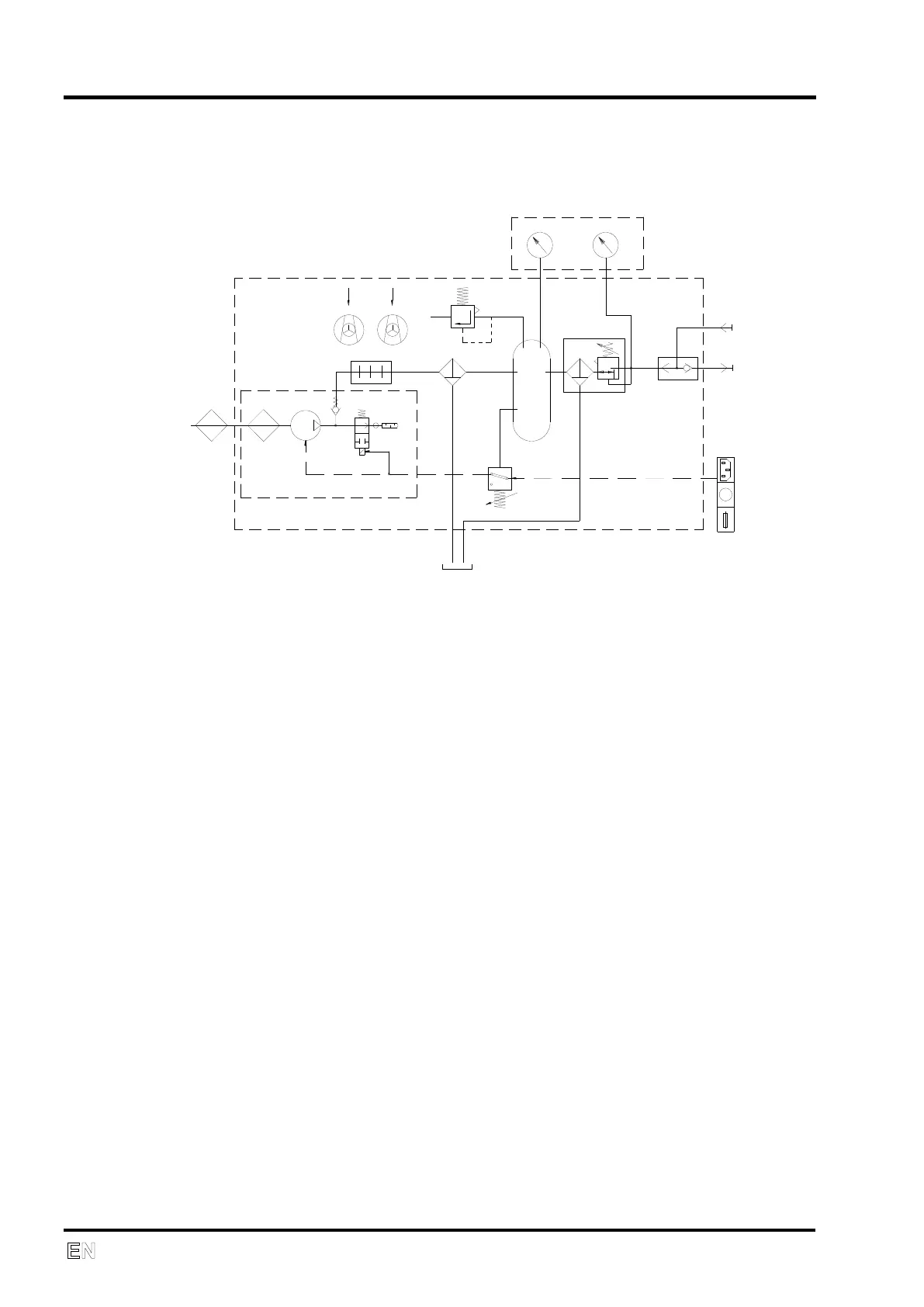

PNEUMATIC DIAGRAM
2
1
19
3
4
6
8
5
18
18
13
14
9
7
17
10
12
WALL
20
OUT
11
15 16
CONTROL PANEL
1. Suction filter
2. Suction filter
3. Compressor
4. Solenoid valve
5. Sound absorber
6. Cooler
7. Micro filter with water trap
8. Check valve
9. Air tank
10. Pressure regulator with filter
11. Air Outlet
12. Air Inlet
13. Main input, power switch, primary fuses
14. Pressure sensor
15. Humidity indicator
16. Pressure gauge
17. Pressure relief valve
18. Fan
19. Water tray
20. Shuttle valve
