ELAN HC6/HC12 INSTALLATION MANUAL
© ELAN 2010 | All rights reserved.
Page 36

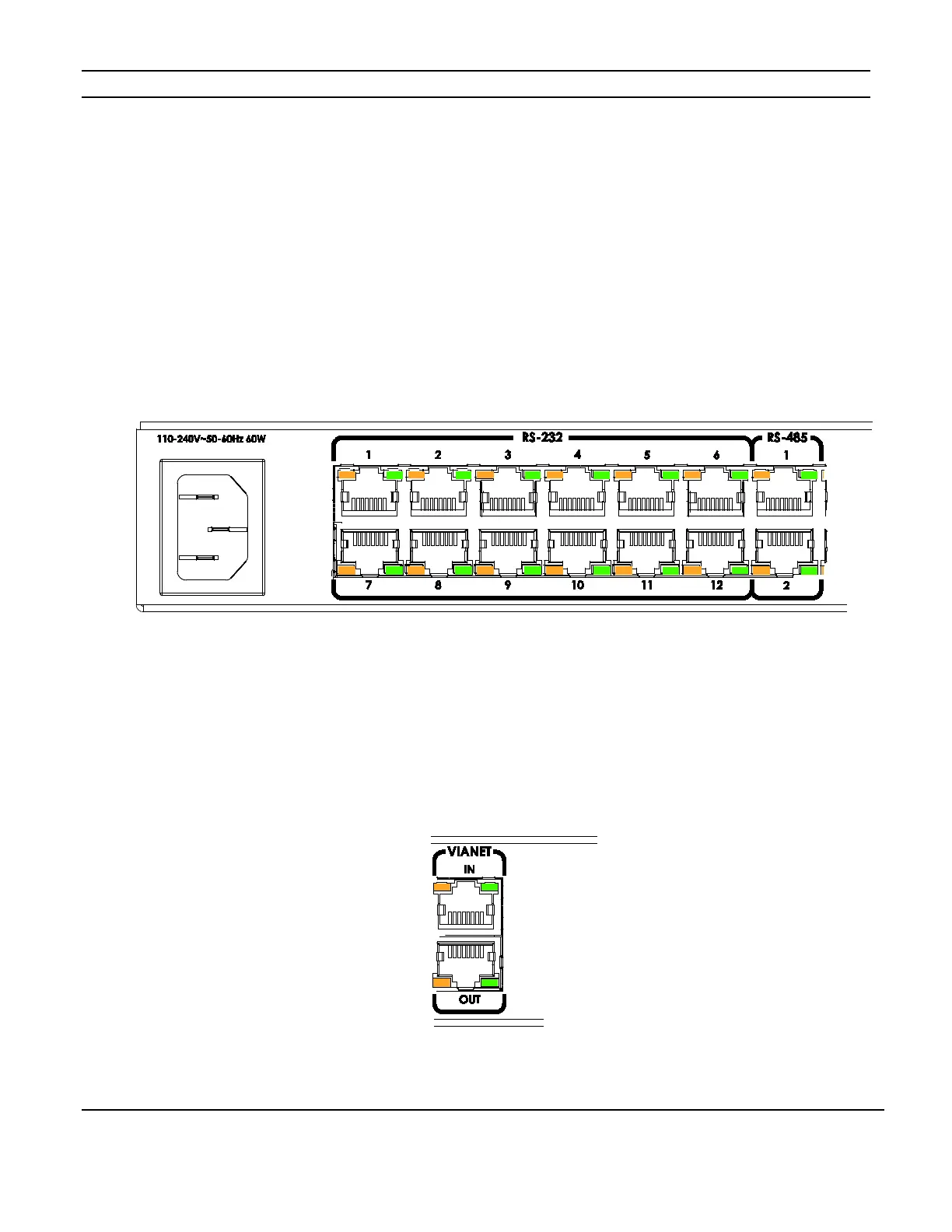

Rear Panel LEDs (Continued)
Serial Ports
Each serial port (RS-232 and RS-485) has an amber LED and a green LED that will
illuminate when that port is active. The amber LED (left) illuminates when the port is
transmitting data and the green LED (right) illuminates when the port is receiving data.
(Fig. 4-3)
Figure 4-3: Serial Port Status LEDs
VIANet Ports
The VIANet port LEDs function the same way as the serial port LEDs. The green (right)
LED indicates VIANet data is being received and the amber (left) LED indicates VIANet data
is being transmitted. (Fig. 4-4) The transmit (amber) LD should always be illuminated.
Figure 4-4: VIANet Port Status LEDs
