PPSP Precision Panel
The PPSP provides DC power distribution for up to 8 in-wall panels. Use the included
16VDC, 1.5 amp power supply for up to 3 TS7 panels. A 16VDC, 4 amp power supply is
available when 4-8 TS7s will be connected to one PPSP. The PPSP screw down terminals
accommodate up to 16 gauge wire.
Figure 5-11 shows the connections required.
DO NOT CONNECT BOTH POWER SUPPLIES AT THE SAME TIME.

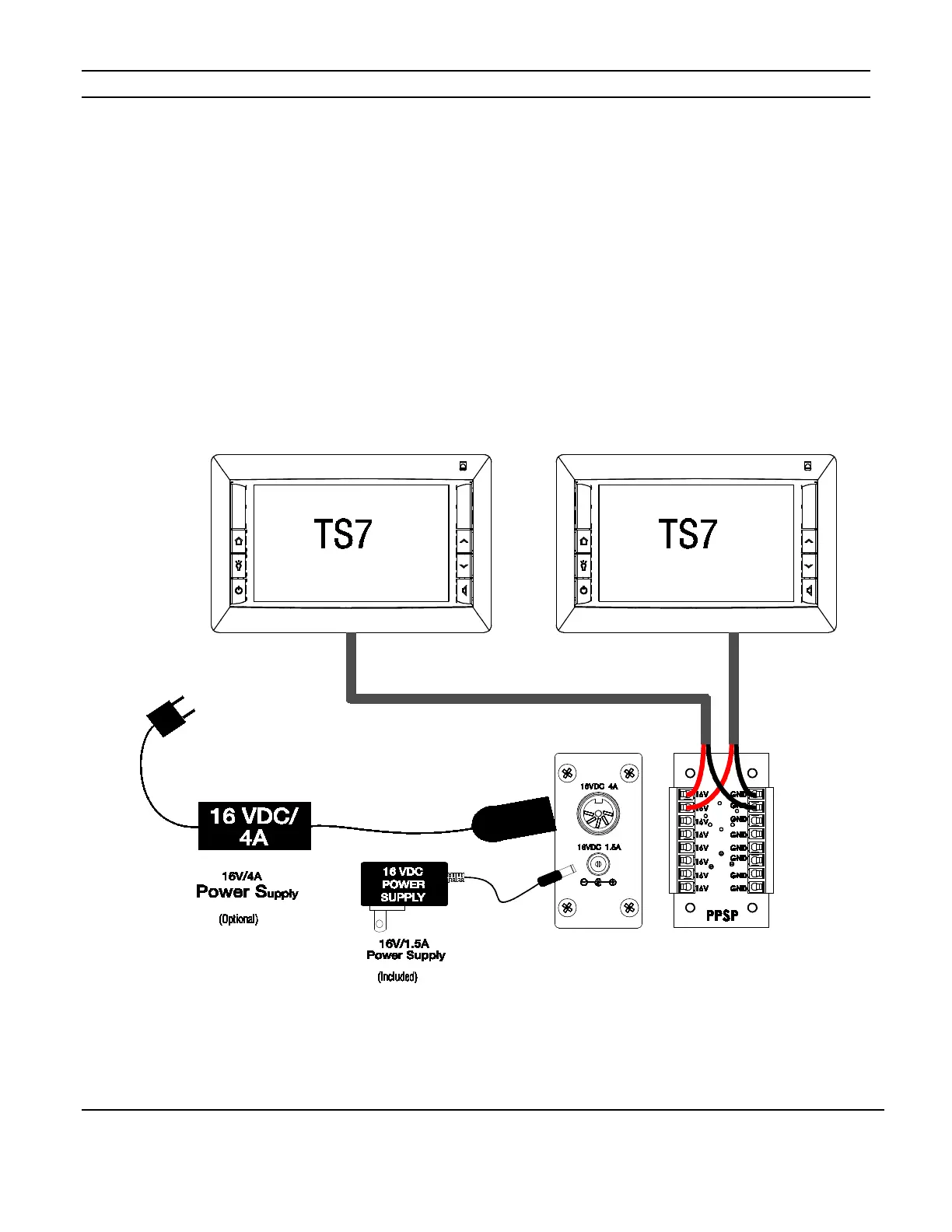

Figure 5-11: PPSP Connections
